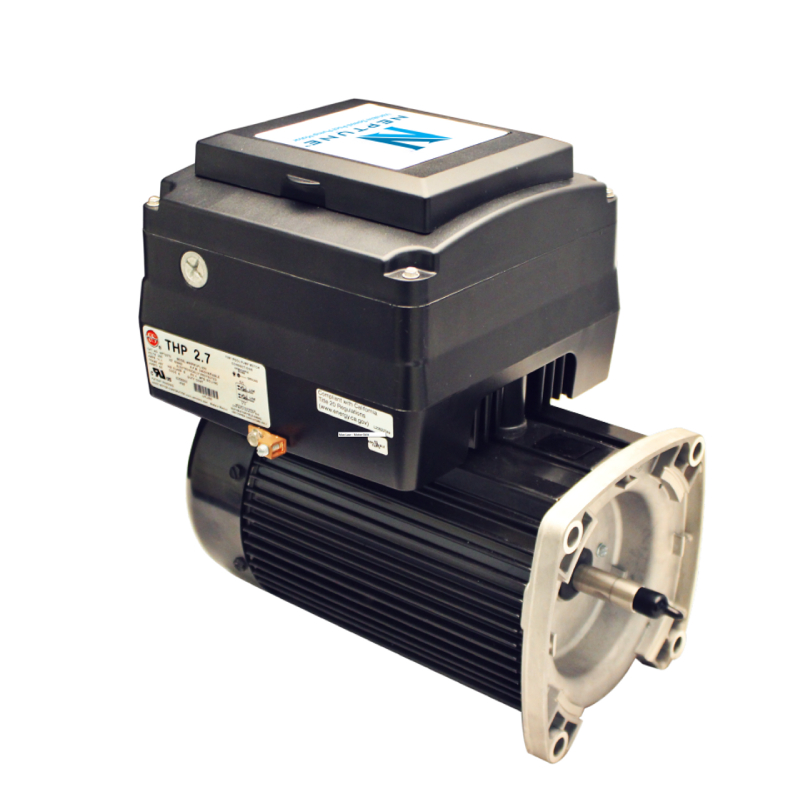

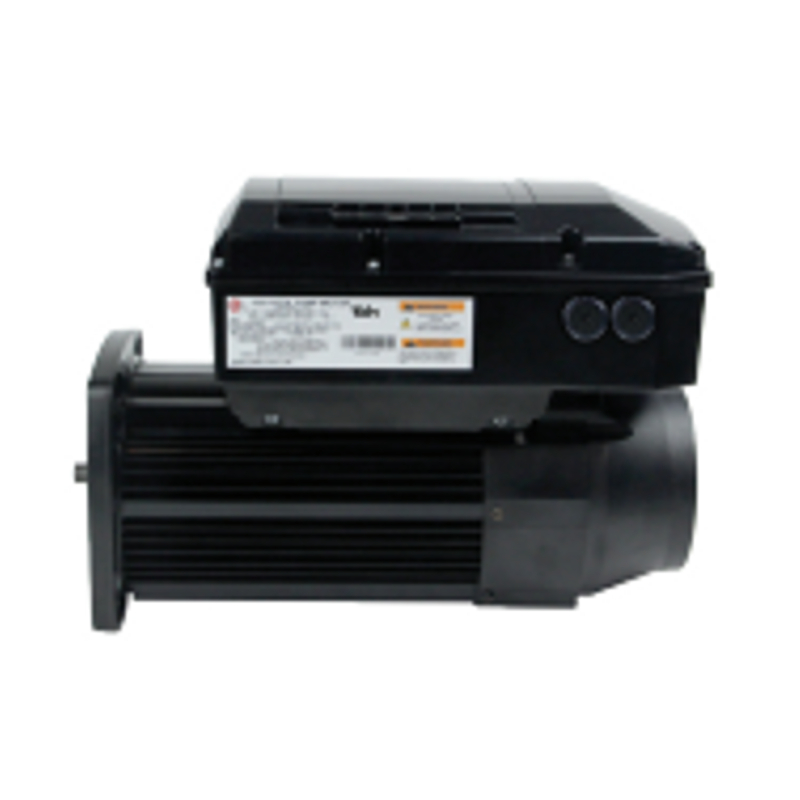

Nidec NPTQ270 2.7THP 230V Variable Speed Neptune Square Flange Motor

Description

Nidec NPTQ270 2.7THP 230V Speed Neptune Flange Motor

The Nidec variable speed pool pump motor is a premium efficient product that includes a fully integrated motor, control and user interface (UI). This U.S. Motors product gives you programming flexibility and speed range capability. It is also designed to communicate and operate with a variety of external system controllers in addition to the onboard UI.

The Neptune variable speed motor is easy to install. By replacing an old single speed pump motor with a Neptune, your customers can keep their properly functioning pump and quickly upgrade it into a much more energy-efficient product.

Nidec NPTQ270 2.7THP 230V Speed Neptune Flange Motor Features:

• Low temperature monitor. The motor, if set to do so, will automatically turn on during cold temperatures to keep the water moving which helps prevent pipe damage.
• Fully integrated product for simple drop-in installation with no complex motor and control wiring. Simply connect your power supply!
• 1.25THP and 1.65THP models offer dual voltage capability (115/230V).
• Total horsepower (THP) rated, from 1.25THP to 2.70THP.
• Mounting options: Square flange of C-flange 56J mount
• Rotation = counterclockwise viewing the motor shaft
• Capability to set up to seven daily schedules.
• Adjustable priming time and speed
• Speed range = 600 to 3450 RPM.
• Single phase input, 50 or 60 Hz.
• Menu keypad lockout feature
• Efficiency is 80%+.

.
