Description

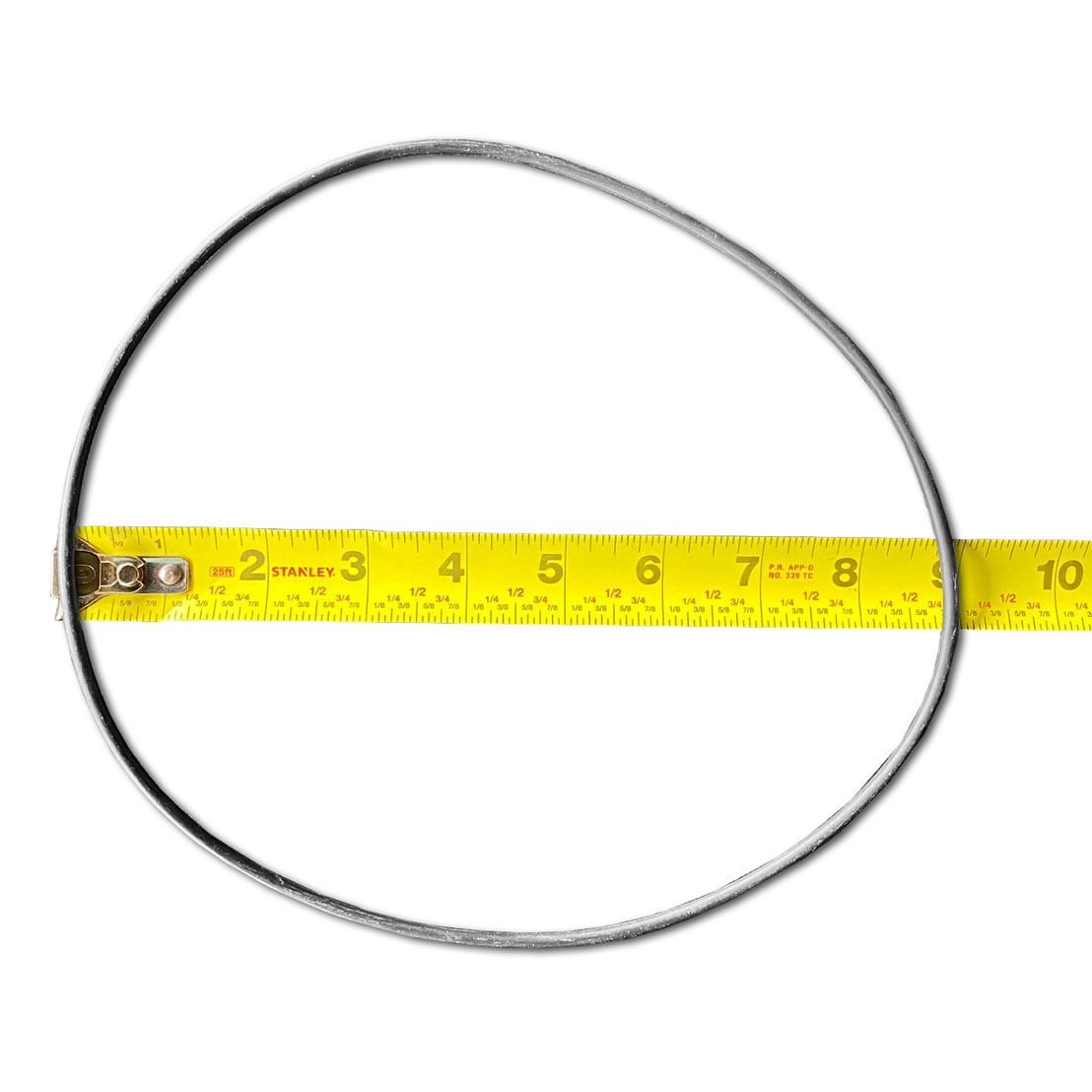

Excel Pump Motor Cover O Ring – 9in Gasket
The Excel 1.5hp Pump Motor Cover O Ring is a direct replacement for your Excel 1.5hp Inground Pool Pump. This 9in rubber gasket is highly recommended when replacing the strainer housing or motor in your Excel Pool Pump.
See the diagram below to reference the Excel 1.5hp Inground Pool Pump parts:
| 1 | Strainer Cover |
| 2 | Strainer Cover O-Ring |
| 3 | Strainer Basket |
| 4 | Strainer Housing |
| 5 | Diffuser O-Ring |
| 6 | Screw ST4.2X38 |
| 7 | Diffuser |
| 8 | Impeller |
| 9 | Motor Cover O-Ring |
| 10 | Motor Cover |
| 11 | Gasket M10 |
| 12 | Screw 3/8-16*1 1/2 UNC |
| 13 | Seal Assembly |
| 14 | Supporting foot |
| 15 | Mounting foot |
| 16 | Screw M6X20 |
| 17 | Gasket M6 |
| 18 | Nut M6 |
| 19 | Nut 3/8-16 |
| 20 | Drain Plug Gasket |
| 21 | Drain Plug |
| 22 | Gasket M10 |
| 23 | Screw M10X25 |
| 24 | 1.5hp Motor |
