HydroQuip CS6009-US2 2-Pump and Blower Air Control System

Description

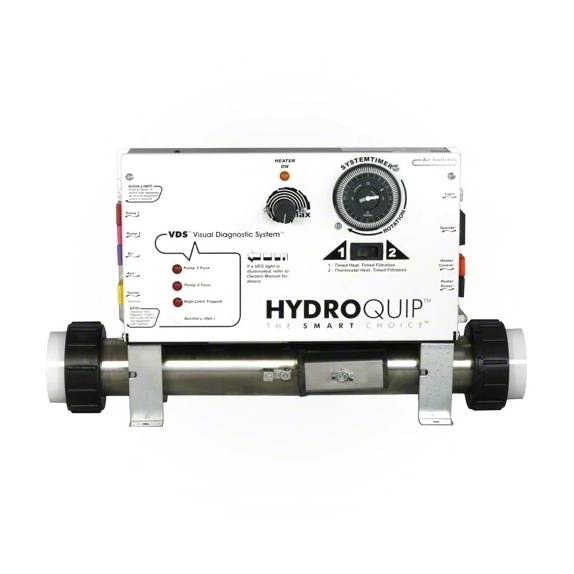

HydroQuip CS6009-US2 2-Pump and Blower Air Control System

The HydroQuip CS6009-US2 2-Pump and Blower Air Control System is the most versatile Electro-Mechanical control unit with its one of a kind vertically adjustable heater. Mount the heater where you need it – anywhere along the back of the control box, underneath, or remote!

Hydro-Quip has been providing the hot tub, spa, and jetted bath industries with premium equipment systems since 1981. We have established an unmatched global reputation for superior quality, reliability, and customer service. We design, manufacture, and private label custom equipment for OEMs. Our Distributor product line includes electronic and pneumatic controls, heaters, and blowers. Service Centers rely on us for perfect retro-fit solutions for any spa ever made. We have the most comprehensive selection of controls and equipment in the leisure water industry.

HydroQuip CS6009-US2 2-Pump and Blower Air Control System Features:

• 1.375 KW at 110 Volts / 5.5 KW at 240 Volts
• 120 Volt / 240 Volt Convertible Power
• Ozone Circuit (120 Volt / 240 Volt)
• “Paint-Lock” Rust Proof Enclosure
• “VDS” Visual Diagnostics
• Full Range Thermostat
• Lighted Smart Cords.
• Light Circuit (12 Volt)
• Detailed Owners Manual
• Detailed Wiring Diagram
• Heater “ON” Indicator Light
• 1 Year Manufacturer’s Warranty Standard

          The HydroQuip CS6009-US2 Control System Can Operate:

• 1- 5.5 KW Stainless “SLIDE” Heater Assembly
• 1- One or Two Speed Pump Either 120 Volt or 240 Volt
• 1- One Single Speed Pump
• 1- Blower
• (A Total of 2 Pumps and a Blower)
• 1- Ozonator (120 Volt or 240 Volt)
• 1- Spa Light
• (All Circuits are convertible to 120 or 240VAC)

          The HydroQuip Water Pro CS6009-US2 System Includes:

• 5.5 KW Stainless “SLIDE” Heater Assembly
• Pump, Blower, and Ozone Cords
• CS6009-US2 Control System
• Tailpieces with Gaskets

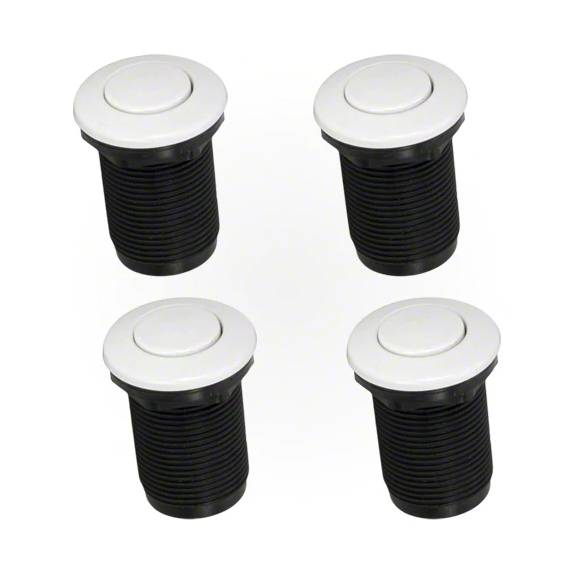

• Air Transmitters
• Air Tubing
  Dimensions:
• 15″ Wide X 11″ High X 5″ Depth
