Westlake Pipe & Fittings 429100 10″ PVC Coupling

Description

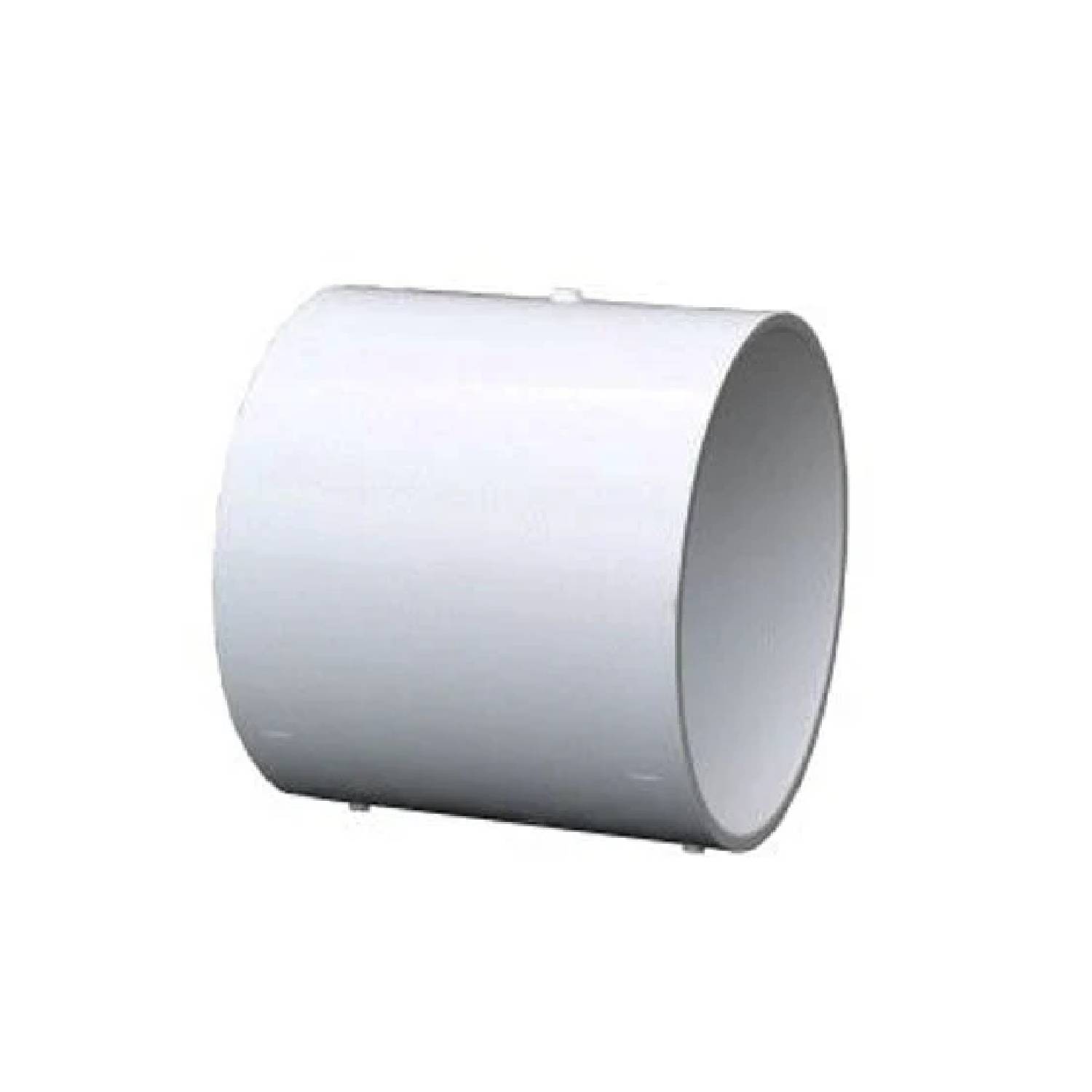

Westlake Pipe & Fittings 429100 10″ PVC Coupling

The Westlake Pipe & Fittings 429100 10″ PVC is a robust and essential component in large-diameter PVC piping systems engineered for joining two sections of 10-inch Schedule 40 PVC pipe. Manufactured by Westlake Pipe & Fittings, a recognized leader in PVC piping products with decades of experience supplying infrastructure and industrial markets, the 429100 coupling is built to deliver reliable performance in demanding fluid conveyance applications.

At its core, a PVC coupling serves as a straight connector that links two pieces of pipe in a linear alignment. In the case of the 429100, both ends are socket (slip) connections, meaning each end of the coupling is designed to accept the smooth end of a 10-inch pipe. This slip-type design allows for solvent cement (glue) connection, creating a permanent, pressure-tight joint when installed according to industry best practices and standards.

This coupling is fabricated from Schedule 40 PVC (polyvinyl chloride) — a rigid, corrosion-resistant thermoplastic widely specified in plumbing, waterworks, industrial, and commercial systems. PVC is inherently resistant to rust, corrosion, and chemical attack from many acidic or basic solutions, salts, and halogens, providing excellent durability in buried, exposed, or corrosive environments.

The material used in the coupling conforms to recognized ASTM standards for PVC pressure fittings. Although specific certification documents for the 429100 can vary by market and certification body, typical requirements include conformity to ASTM D1784 (PVC material specification) and ASTM D2466 (Schedule 40 socket-type PVC fittings). These standards ensure the product meets strict criteria for dimensional accuracy, mechanical performance, and long-term reliability.

PVC’s mechanical properties help the coupling withstand internal pressures typical of Schedule 40 systems, with operating temperature limits up to approximately 140 °F (60 °C). Within this range, the coupling maintains structural integrity and dimensional stability, avoiding deformation or weakening under working loads.

The 429100 coupling is specifically sized for 10-inch nominal pipe diameter, making it suitable for infrastructure-scale piping projects. The socket x socket configuration promotes a clean, direct join between two pipe ends, which is ideal in long-straight runs where direction changes or branch connections are not required. This makes it invaluable in systems such as mainline water distribution, irrigation mains, large-scale drainage, and industrial process lines.

One of the primary design advantages of a slip coupling is the simplicity of installation. Because both ends simply receive the pipe ends, installers can align the pipes quickly, apply solvent cement to the inside of the coupling sockets and outside of the pipe ends, and then make the joint. This chemical welding process results in a monolithic bond between fitting and pipe that is often stronger than the pipe itself, ensuring long-lasting performance with minimal maintenance.

PVC couplings like the 429100 also deliver a smooth interior surface, reducing friction and minimizing turbulence in fluid flow compared with threaded or grooved alternatives. This smooth bore contributes to efficient fluid conveyance and helps maintain system performance over time.

When installing the 429100 10″ coupling, proper preparation of the pipe ends is essential. Pipes should be cut squarely and deburred to ensure full insertion and contact within the coupling sockets. A recommended PVC primer is often applied to both the pipe ends and the coupling sockets before applying solvent cement. Once solvent cement is applied, the pipe is inserted into the coupling with a slight twist to distribute the cement evenly. After assembly, the joint must be allowed to cure according to manufacturer recommendations before pressurizing the system.

This secure, solvent-welded connection eliminates leaks, enhances structural integrity, and contributes to the long service life that PVC piping systems are known for — often exceeding decades with minimal maintenance.

Westlake Pipe & Fittings is dedicated to helping contractors maximize efficiency and helping engineers design systems that entire communities can rely on.With manufacturing & distribution centers across North America, dedicated sales, technical services, specification engineers and customer support teams, our unparalleled service allows you to design, specify and install complete projects with confidence.

Westlake Pipe & Fittings 429100 10″ PVC Coupling Features:

• The Westlake Pipe & Fittings 429-100 is a ten-inch socket coupling designed for connecting pipes in various plumbing applications.
• This coupling is ideal for use in residential and commercial plumbing projects, providing a reliable connection for PVC pipes
• Suitable for a wide range of applications, including municipal, industrial, agricultural, and pool systems
• Made from high-quality Schedule 40 PVC, engineered for strength, durability, and corrosion resistance
• Meets industry standards such as ASTM D1784/D2466 and NSF certifications (where applicable)
• Socket x socket (slip x slip) connection type for seamless inline joining of two PVC pipe sections
• Designed for service temperatures up to 140 °F (60 °C) under typical operating conditions
• This coupling meets schedule 40 standards to ensure durability and efficiency in usage
• Designed for 10″ nominal pipe size — suitable for large diameter piping systems
• Compatible with solvent-weld installation for permanent, leak-resistant joints
• Broad chemical resistance against acids, bases, salts, and oxidants
