Waterway 640-1367 V 32″ Channel Gray Concrete Diamond Strip Drain

Description

Waterway 640-1367 V 32″ Channel Gray Concrete Diamond Strip Drain

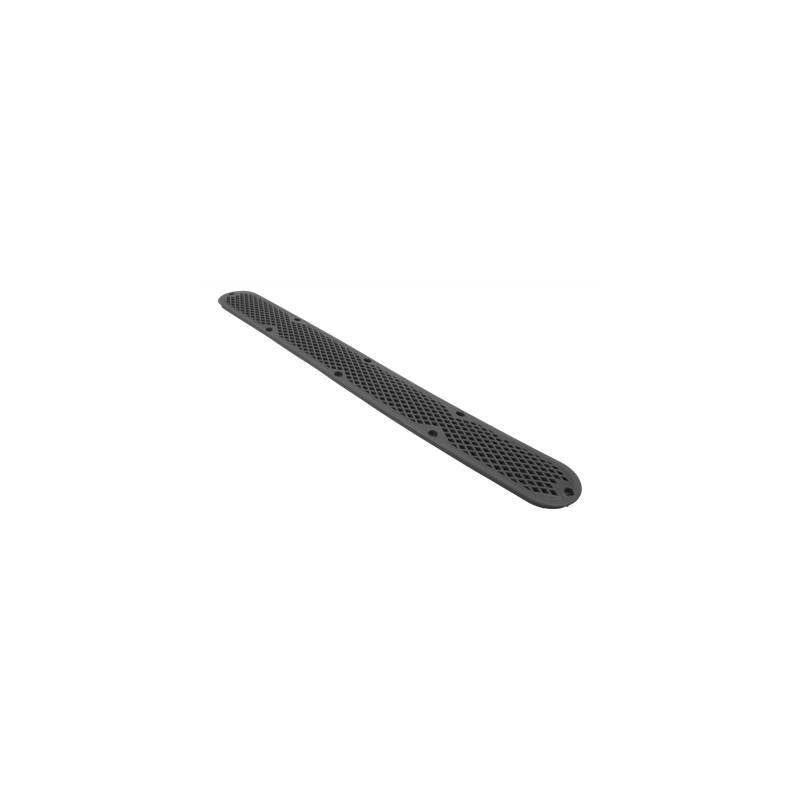

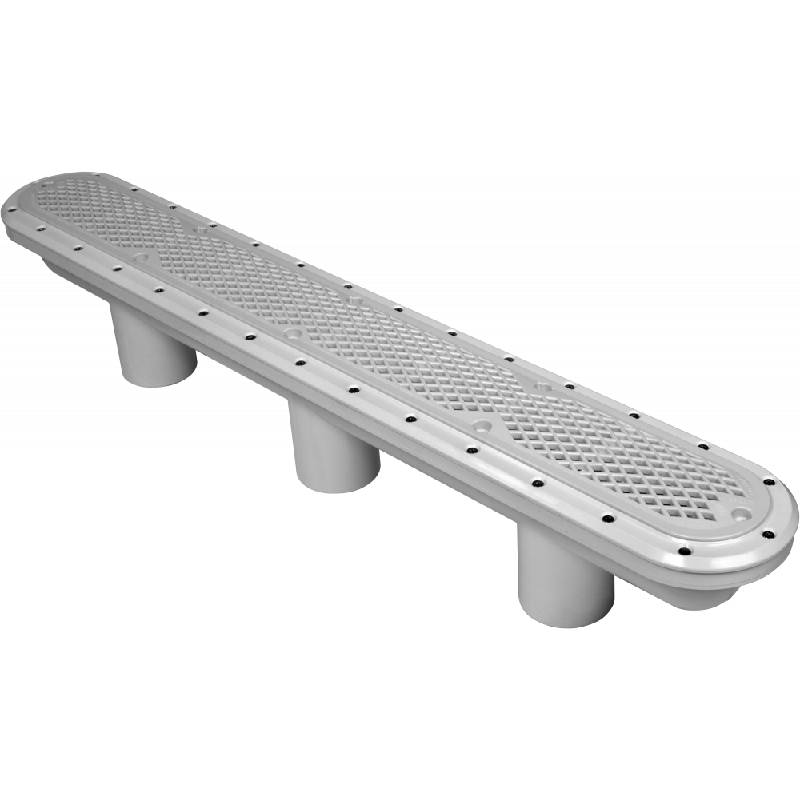

The Waterway Plastics 640-1367 V Concrete Diamond Strip Drain; 32 Inch Channel; Gray.This drain assembly includes grate, plugs, 3-port sump, cover and stainless steel screws.Designed for single or multiple drain use

To Waterway, its more than just about water, it’s about long term health and well being for your family. Established in 1987, this company is the longest existing and most experienced water filtration and purification company in South Australia. True industry experts, they are fully experienced in all aspects of water purification, filtration, and treatment.

Waterway 640-1367 V 32″ Channel Gray Concrete Diamond Strip Drain Features:

• Floor Flow Rate (One Port Center): 280 GPM @ 3.75 ft/sec.
• Wall Flow Rate (One Port Center): 216 GPM @ 2.89 ft/sec.
• Floor Flow Rate (Two Ports): 320 GPM @ 4.29 ft/sec.
• Wall Flow Rate (Two Ports): 240 GPM @ 3.22 ft/sec.
• Flow Rate @ 1.5 ft/sec: 110 GPM.
• Total Open Area: 37.7 sq. in.
• 2 – 2″ MPT Plugs Included.
• Ports – 2″ S or 2 1/2″ SPG.
• Frame Size: 32″ Channel.
