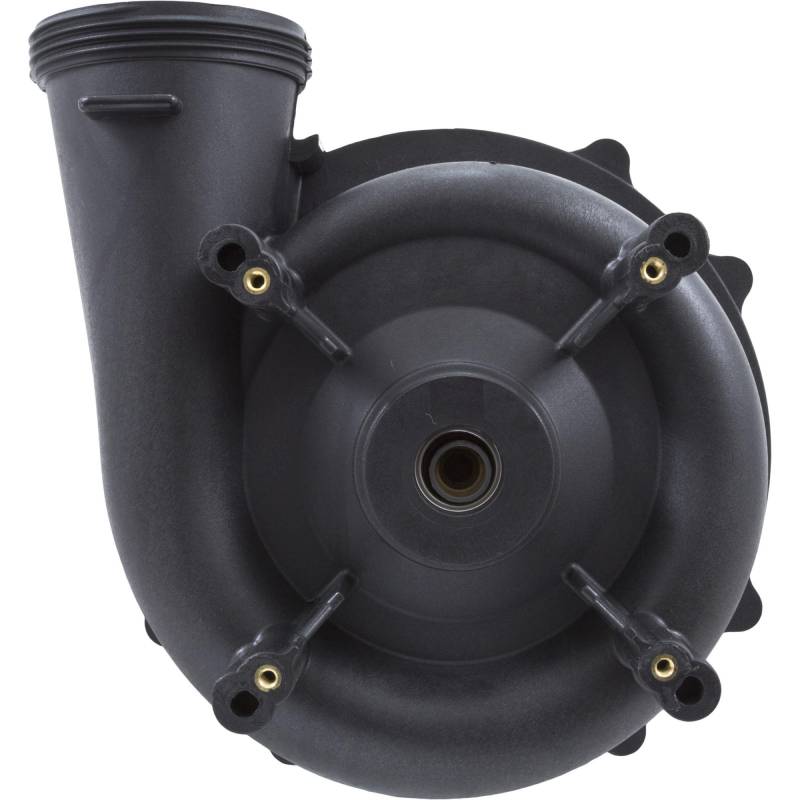

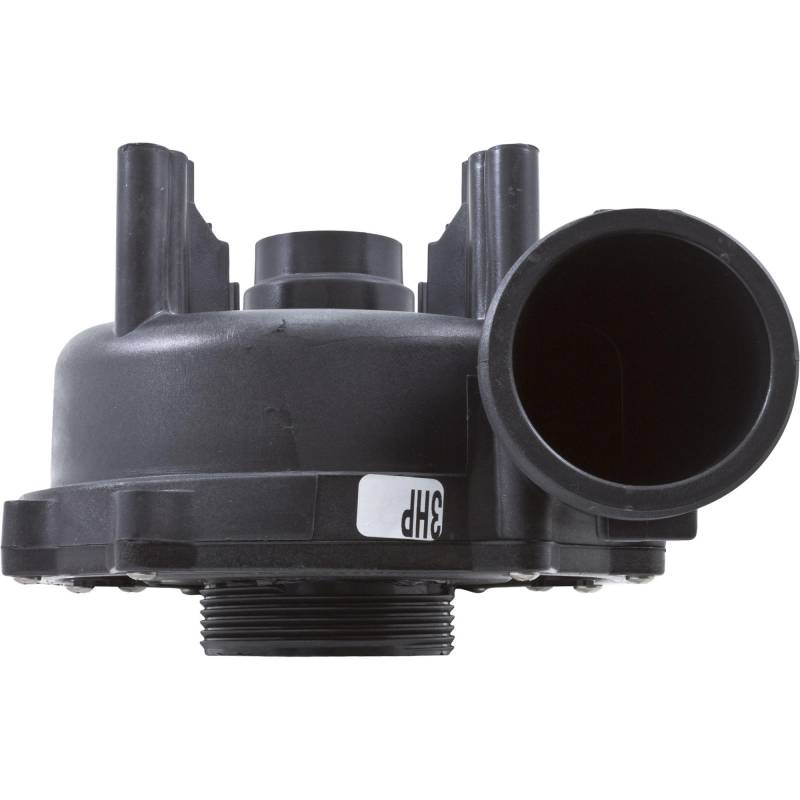

Waterway 310-1900 3HP 2″ 48FR Executive Wet End

Description

Waterway 310-1900 3HP 2″ 48FR Executive Wet End

The Waterway 310-1900 is the Wet End portion of a 3 HP Executive 2″ suction, 48Y frame spa pump. This is basically a pump without a motor. This Wet End is used with a 3 HP, 48Y frame, thru-bolt style motor. The motor used may be either a single speed or a two speed. The Wet End may be rotated 90 degrees to change the discharge position.

Waterway 310-1900 3HP 2″ 48FR Executive Wet End Features:

• The Waterway 310-1900 has Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Connection (Physical Dimension): 3-1/16″od
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Connection (Physical Dimension): 3-1/16″od
• Manufacturer Impeller Number: 310-4210 (2.0hp)
• Volute/Sealplate Number: 315-1240
• Motor Frame: 48 Frame Thru-Bolt
• Drain Plug Location: 3,6,9 o`clock
• Volute Fastening Type: 8 Screws
• Pump to Motor Foot Types: 4a
• Discharge Auxilary Port: None
• Suction Auxillary Port: None
• Manufacturer: Waterway
• Pump Model: Executive
• Discharge Pipe Size: 2″
• Discharge Style: Side
• Suction Style: Center
• Suction Pipe Size: 2″
• Horsepower: 3.0hp
