Waterway 310-1880 1.5HP 2″ 48FR Executive Wet End

Description

Waterway 310-1880 1.5HP 2″ 48FR Executive Wet End

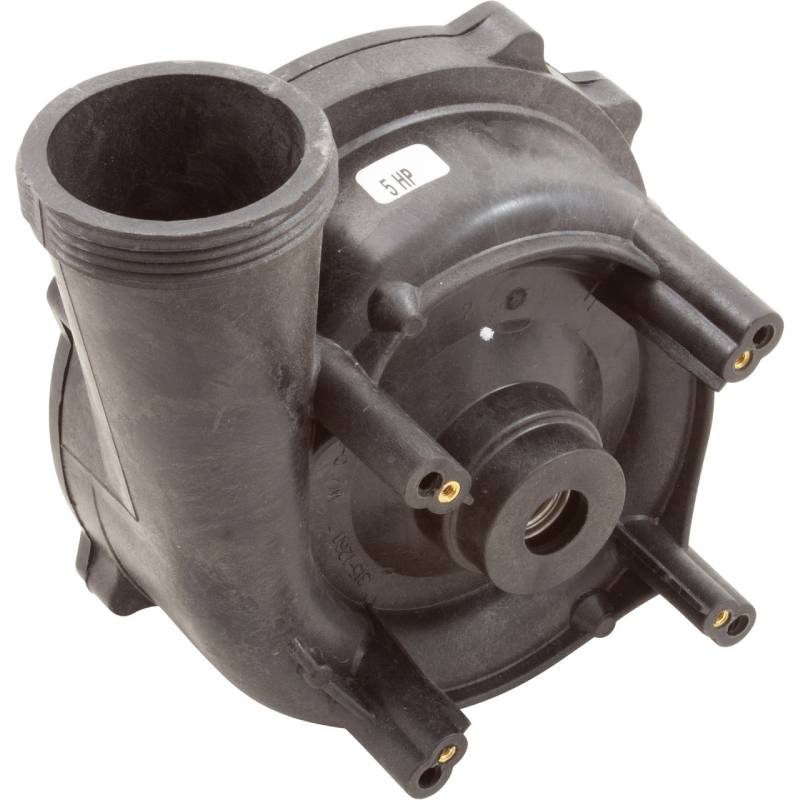

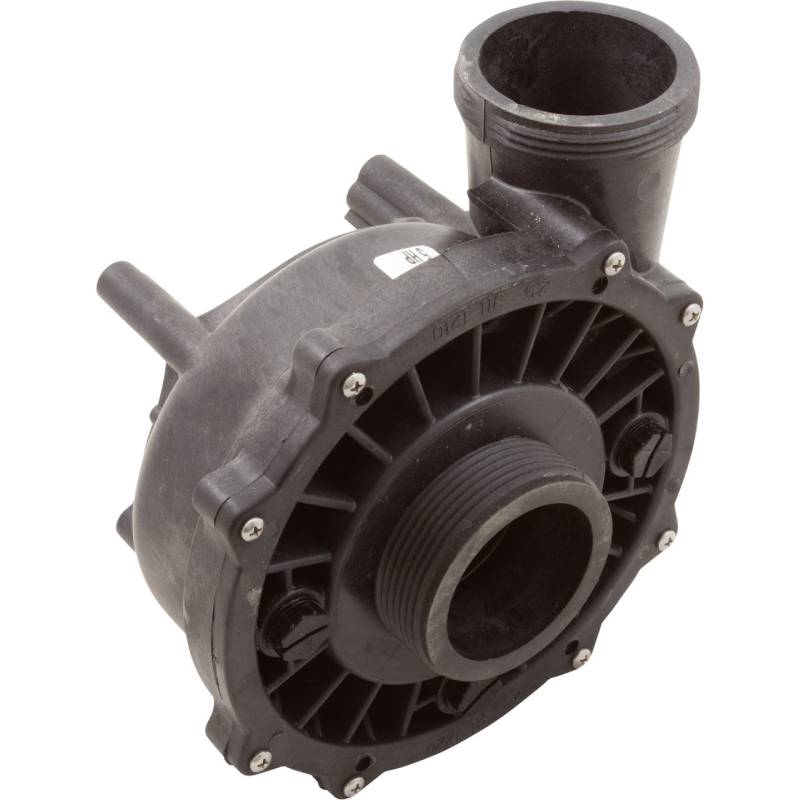

The Waterway 310-1880 has Side discharge, 2″mbt suction/discharge, 48 frame wet end for the Waterway Executive pump. This wet end is used with a 1.5hp, 48 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover O-ring, drain plug, drain plug O-ring and suction cover screws. Motor and unions sold separately.

Waterway 310-1880 1.5HP 2″ 48FR Executive Wet End Features:

• The Waterway 310-1880 has Discharge Connection Type – Male Buttress Thread (mbt)
• Discharge Connection (Physical Dimension) – 3-1/16″ od
• Suction Connection Type – Male Buttress Thread (mbt)
• Volute/Seal plate Number – 315-1240
• Motor Frame – 48 Frame Thru-Bolt
• Drain Plug Location – 3,6,9 o`clock
• Volute Fastening Type – 8 screws
• Pump to Motor Foot Types – 4a
• Discharge Auxiliary Port – None
• Suction Axillary Port – None
• Manufacturer – Waterway
• Pump Model – Executive
• Discharge Pipe Size – 2″
• Discharge Style – Side
• Suction Style – Center
• Suction Pipe Size – 2″
• Horsepower – 1.5hp
