Waterway 310-1510 5HP 2.5″ 56FR Executive Wet End

Description

Waterway 310-1510 5HP 2.5″ 56FR Executive Wet End

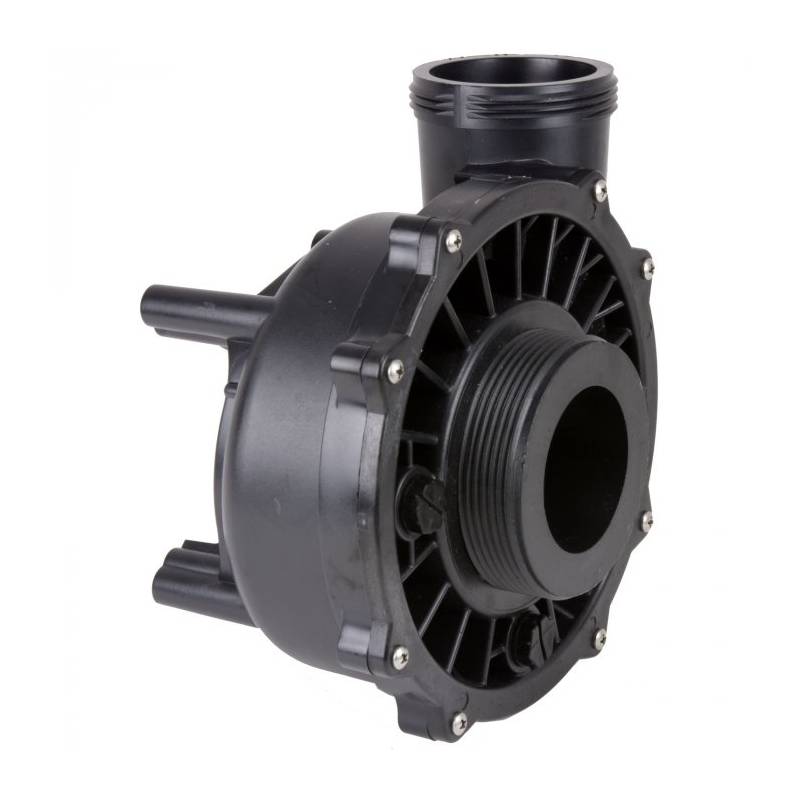

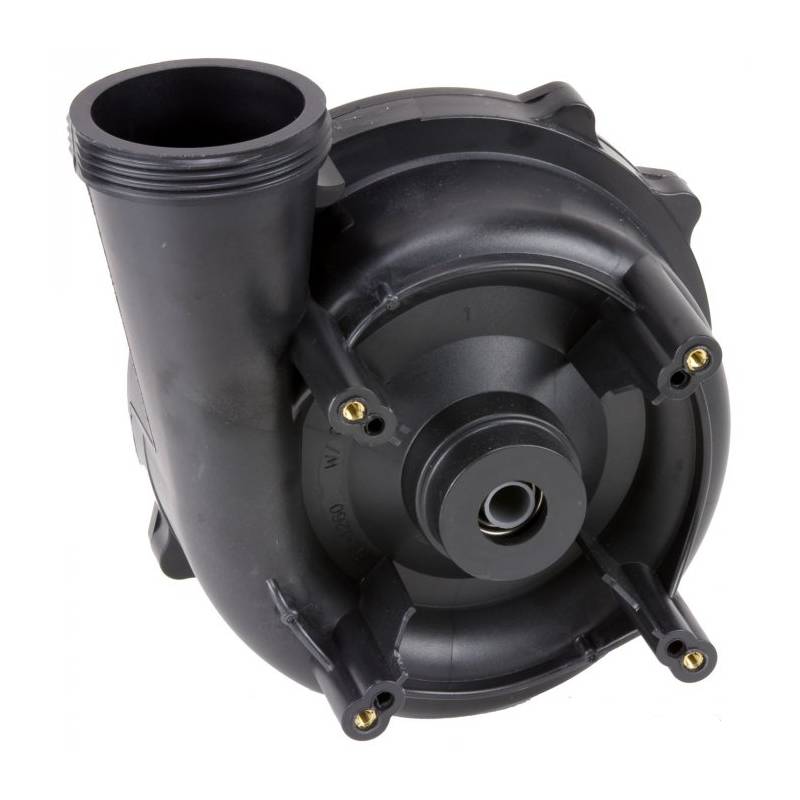

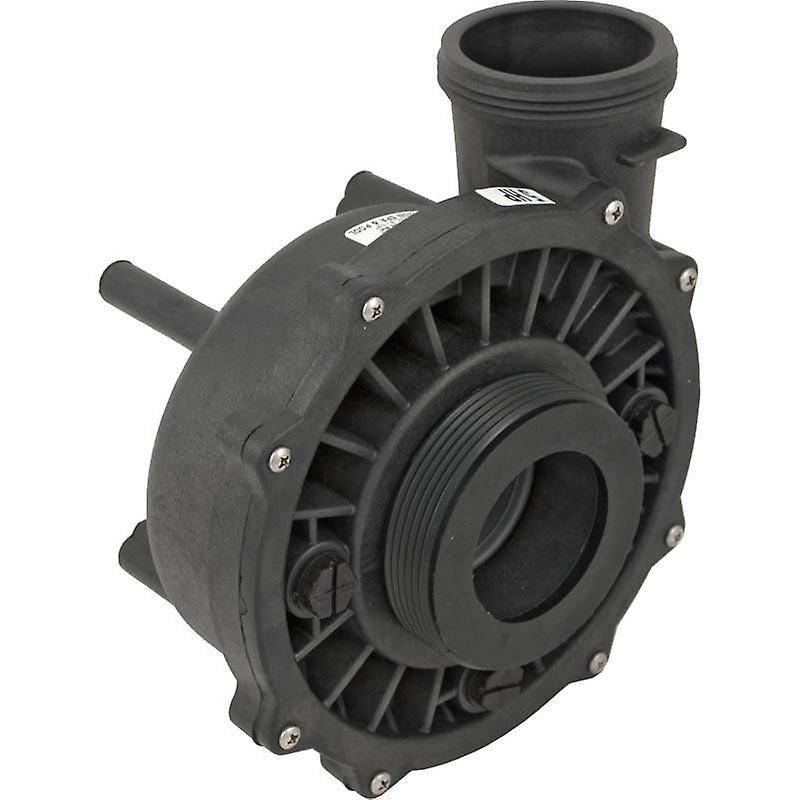

This is the Wet End portion of a 5 HP Executive 2-1/2″ suction, 56Y frame spa pump. This is basically a pump without a motor. This Wet End is used with a 5 HP, 56Y frame, thru-bolt style motor. The motor used may be either a single speed or a two speed. The Wet End may be rotated 90 degrees to change the discharge position.

To Waterway, its more than just about water, it’s about long term health and well being for your family. Established in 1987, this company is the longest existing and most experienced water filtration and purification company in South Australia. True industry experts, they are fully experienced in all aspects of water purification, filtration, and treatment.

Waterway 310-1510 5HP 2.5″ 56FR Executive Wet End Features:

• Waterway Pump Parts 310-1510 3101510 Wet End for Executive Series 56 frame pumps rated 230V/16A 2″ SD/ 2.5″CS.
• For pumps rated 5 HP, pump complete p/n is 3722021-13, model PF-50-2N22C, using impeller p/n 310-4180.

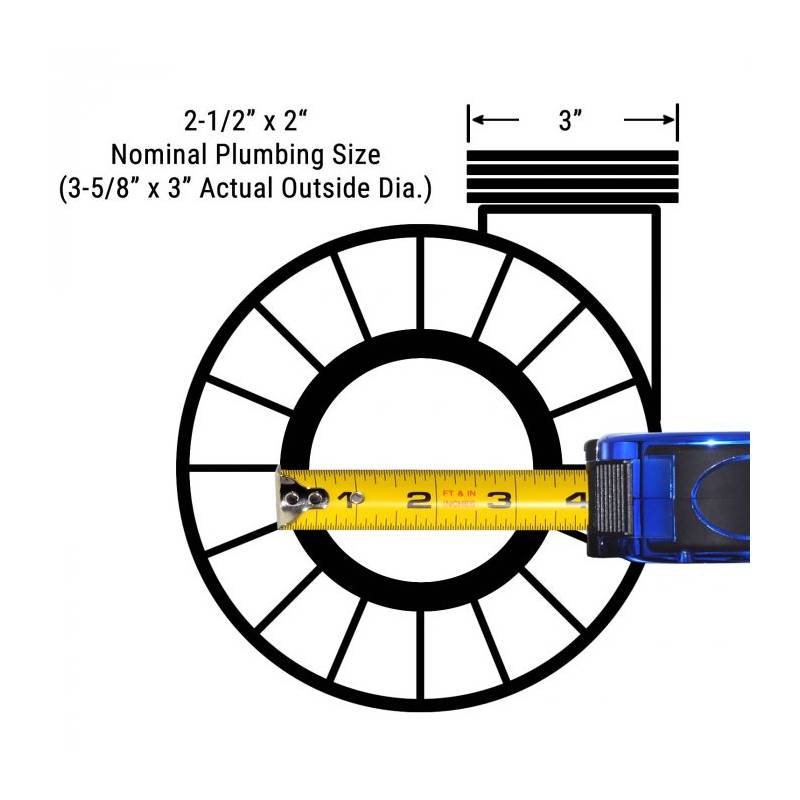

• Threads measure 3.7″ inlet, 3.1″ discharge, outside diameter, 2.5″ & 2″ MBT industry standard thread.

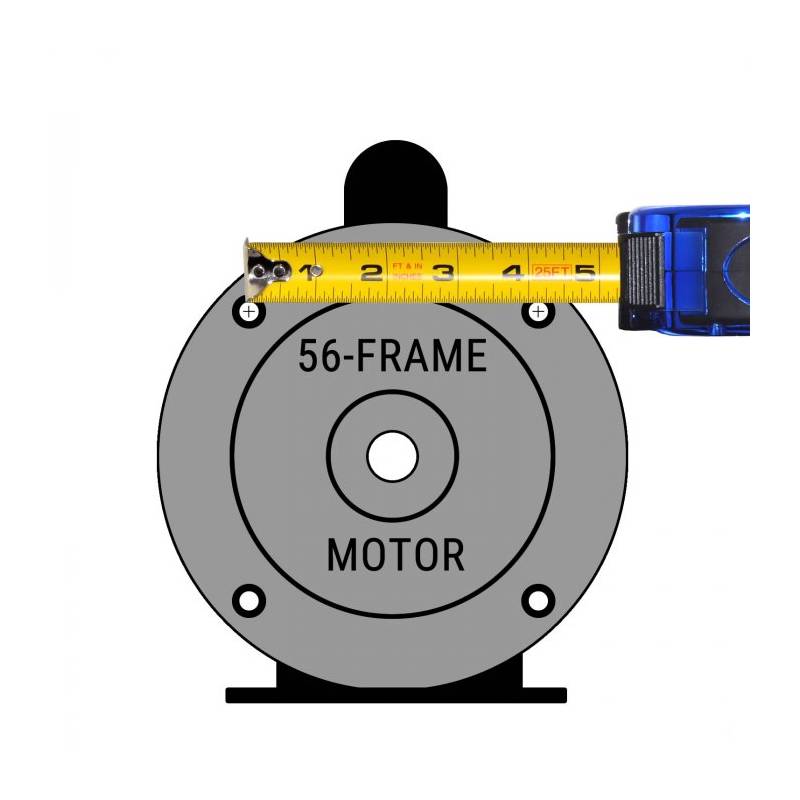

• This is typical of big 56 frame motor bolt pattern this is measured diagonally bolt to bolt.
• Fits Waterway pumps with 6.5″ diameter motors (true 56 frame), with 2″ PVC pipe size.
• Waterway Pump Parts and genuine OEM replacement parts by Waterway Plastics.
• Waterway pumps are Made in the U.S.A. PF502N22C PF 50 2N22C 372202113
• This has bolt pattern of 5.8″ bolt circle.
