Description
U.S Seal BC-36M-250-S 36-43MFD Start Capacitor 250V
The U.S Seal BC-36M-250-S Start Capacitor; 250 V; 36 – 43 MFD
U.S. SEAL MFG. products represent 95% of the replacement seal market. Our mechanical seals promise long life, reduce maintenance, and provide automatic self-adjustment. Our technical and sales staff have over 75 years’ combined experience in the mechanical seal industry.
U.S Seal BC-36M-250-S 36-43MFD Start Capacitor 250V Features:

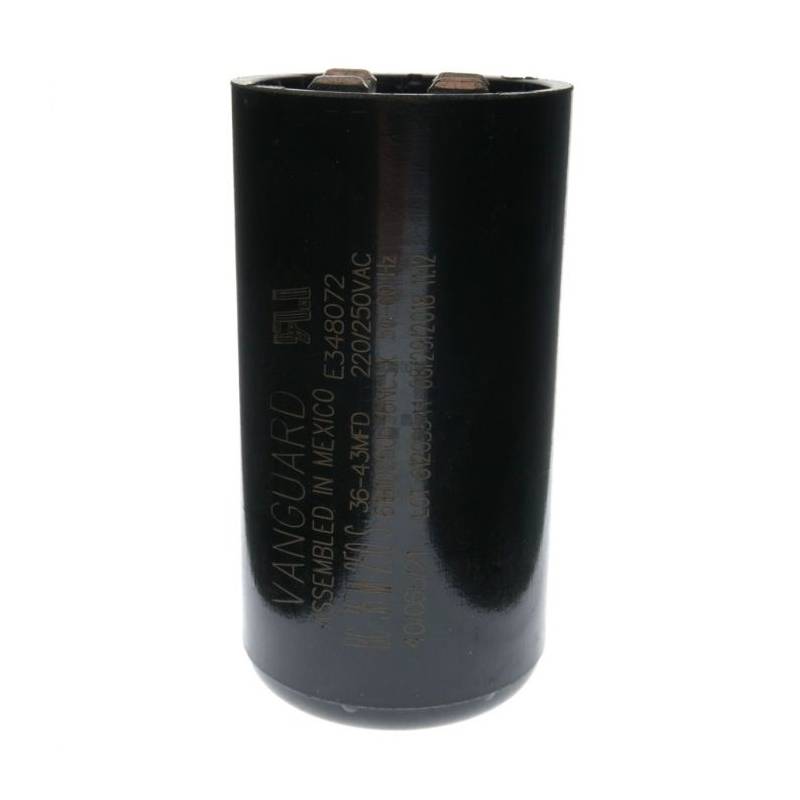

- Product Label Vanguard, Assembled in Mexico,BC-36M-250-S,36-43MFD 220/250VAC,61B1D250036NCSX 50-60Hz
- Manufacturer Part Number BC-36M-250-S,61B1D250036NC,61B1D250036NCSX
- Power Factor 10% Max after applying working voltage for 4 seconds

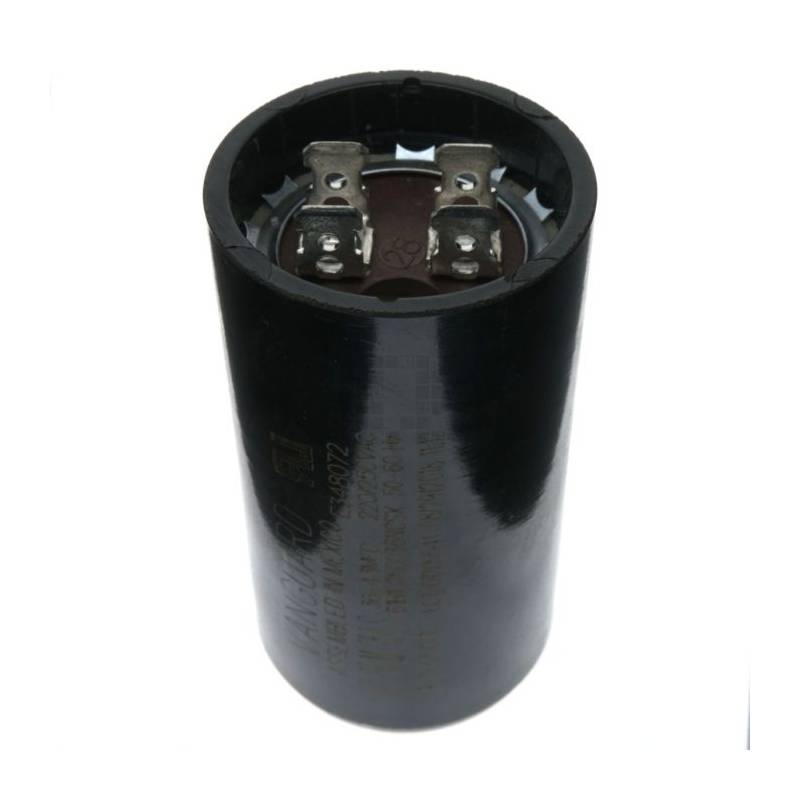

- Connection 2 Posts, Two 1/4” male spade terminals on each post
- Working Temperature Range -40°C to +65°C ,-40°F to +149°F
- Type Start Capacitor Aluminum Electrolytic, Non-Polarized
- Certifications/Approvals UL Approved
- Cross Reference (Fit/Form/Function)
- Distance Between Terminals 0.50″
- Working Voltage 220 -250 VAC
- Product Origin (COO) Mexico
- Construction Phenolic Case
- Capacitance 36 – 43 uF
- Frequency 50/60 Hz
