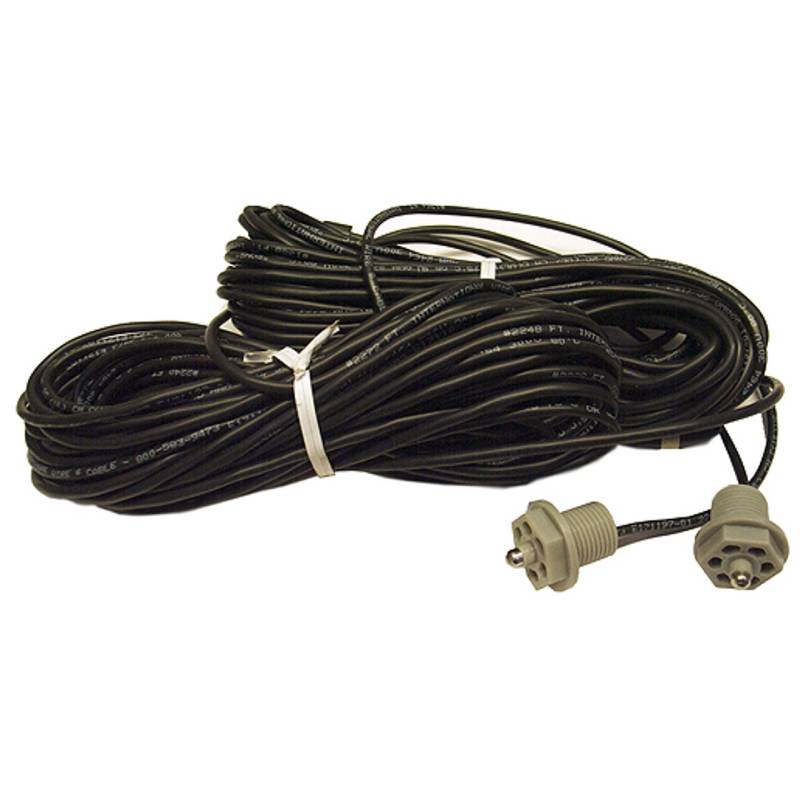

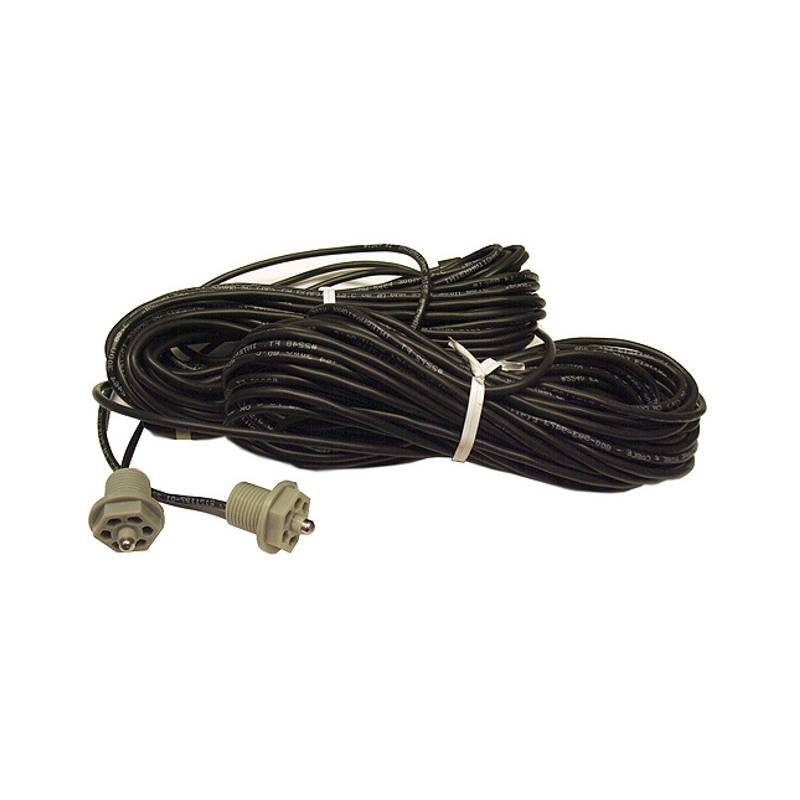

Sundance 6600-169 Temperature Sensor with 50′ Cable

Description

Sundance 6600-169 Temperature Sensor with 50′ Cable

The Sundance 6600-169 are located in the filter compartment on the side. They are unscrewed from the inside of the tub and the wire is fed through the tub over to the equipment compartment. Follow the wire to the PC Board The connectors on the Temp Sensor are attached to a pc board connector that is located on the PC Board (usually at the top). There are other wires connected to this plug: Jumper interlock wire,Flow Switch, High Limit and Temp sensor. Remove the pin connector from the board . To remove a sensor or switch wire from the sensor harness connector, insert a paper clip into the slot corresponding with the wire to be removed. This will depress the pin tine, allowing the wire to be pulled from the harness connector.

Sundance 6600-169 Temperature Sensor with 50′ Cable Features:

• They are unscrewed from the inside of the tub and the wire is fed through the tub over to the equipment compartment
• The Sundance 6600-169 are located in the filter compartment on the side
• Manufacturer Part Number: 6600-169
• Manufactured by Sundance
• Type: Temperature Sensor
• Includes: 50 feet Cable
