Raypak 003765F 105A-408 Sensor Well

Description

Raypak 003765F 105A-408 Sensor Well

The Raypak 003765F Inc Sensor Well Kit Versa is designed to last. It is made from quality materials and has been tested in a rigurous quality control process.

For over 70 years, Raypak has been the world’s leading manufacturer of copper finned boilers and heaters. From a modest beginning in 1947 in founder Al Whittel’s garage in Southern California, Raypak now supplies equipment all over the world from its manufacturing facility in Oxnard, California, and its licensee in England. Raypak’s first manufacturing facility was located in El Monte, California. Raypak will consistently provide quality products and services to promote and maintain superior customer satisfaction. The state-of-the-art Oxnard facility prepares the company to meet these growing demands. Raypak’s design goals are and have always been high quality, reliability and energy-efficient. Adhering to these basics is the reason the reputation of the company is held in such high regard by design build consultants, specifying engineers, distributors, contractors and homeowners. In 1996, Raypak was registered to ISO 9001, becoming the first boiler manufacturer to achieve the highest registration level attainable.

Raypak 003765F 105A-408 Sensor Well Features

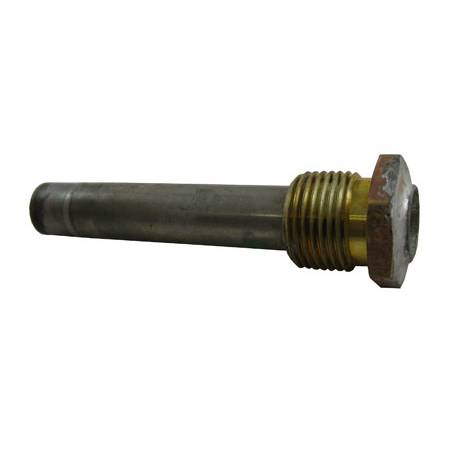

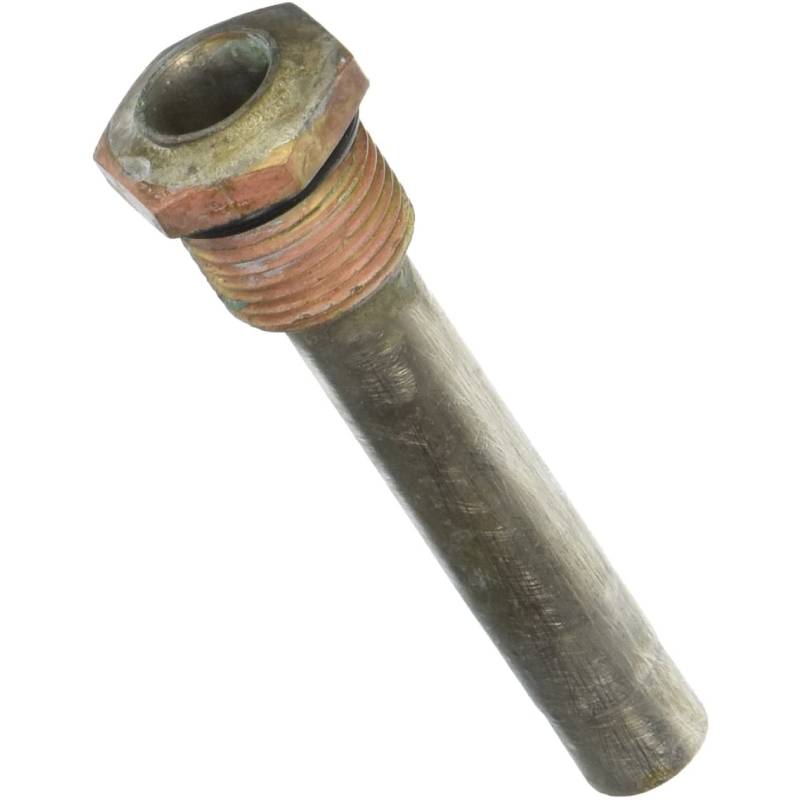

• Raypak 003765F is a stainless steel thermowell used on some Raypak heaters.
• This includes the stainless steel well, a brass threaded piece and an o-ring. the stainless steel tube is also available separately as part #6231-041
• Material: stainless steel tube, brass fittings shape: round cylinder open at one end, closed at the other brass threaded fitting is soldered to the open end of the tube
• Dimensions: stainless steel tube length: 3-3/8″ outside diameter: 1/2″ (except for right at the open end) outside diameter: 9/16″ (the tube is flared right at the open end so it’s larger here) inside diameter: 15/32″ brass fitting hex head on one end, threads on the other, round hollow centre to match tube hex head is 7/8″ from side to opposite side threads are 1/2″ MPT (actual thread diameter for 1/2″ MPT is about 3/4″) length: 13/16″ the o-ring is 13/16″ outside diameter inside diameter is 5/8″
