Pentair 520406 Intellitouch Relay Dimmer Module

Description

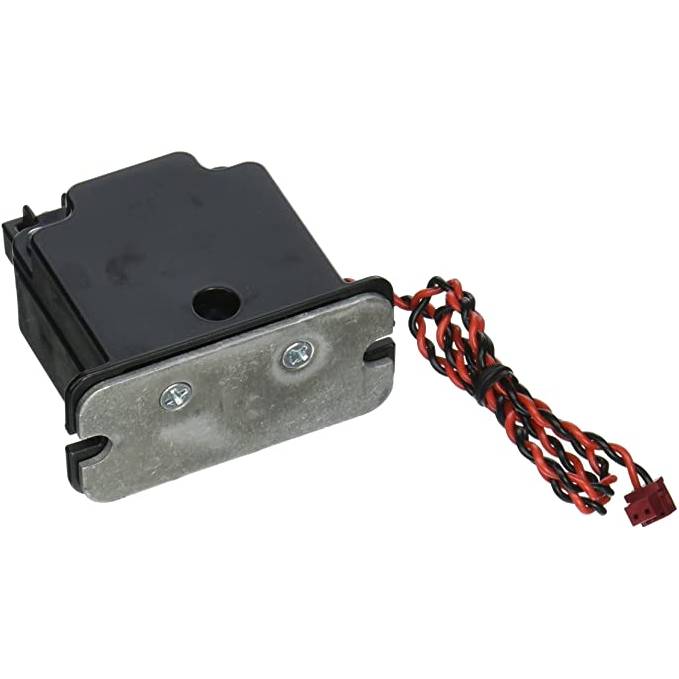

Pentair 520406 Intellitouch Relay Dimmer Module

The Pentair 520406 dimmer module is designed to use with Pentair IntelliTouch pool and spa automatic control system. Enables users to dim their Amerlite and SpaBrite lights up to eight levels (30 percent to 100 percent).

Each dimmer module supports multiple lights from 100-watts up to 1,000-watts combined load using 120-VAC (220-VAC not supported). for example, a 500-Watts and 100-Watts Amerlite (total 600-Watts) could be used with one dimmer module. Installs in a standard relay location. Any number of dimmers (up to 10 maximum) may be used with a maximum combined load of 4,000-Watts.

Pentair 520406 Intellitouch Relay Dimmer Module Features:

• The Pentair 520406 Dimmer Module replacement
• Fits Pentair IntelliTouch pool and spa automatic control system
• Enables users to dim their Amerlite and SpaBrite lights up to eight levels from 30 percent to 100 percent
• Each dimmer Module supports multiple lights from 100-watts up to 1, 000-watts combined load using 120-vac
