Nidec ASB2983T Square Flange Motor With Timer

Description

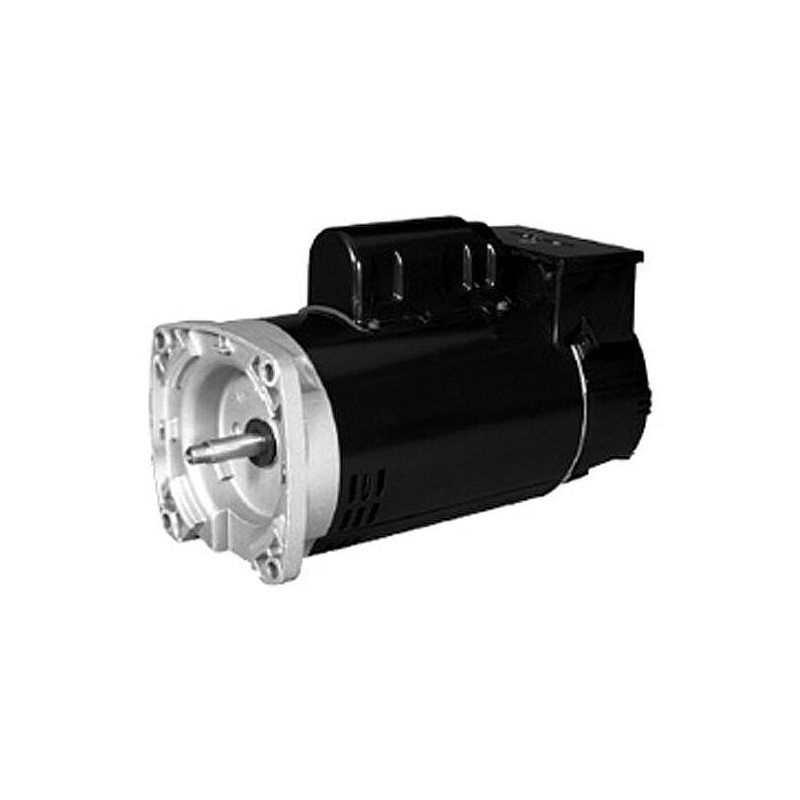

Nidec ASB2983T Square Flange Motor With Timer

This motor and timer is an easy-to-install two-speed pool pump motor with an integrated programmable timer, designed to achieve maximum energy efficiency and utility dollar savings. The drop-in design allows for fast replacement of your existing pool motor.

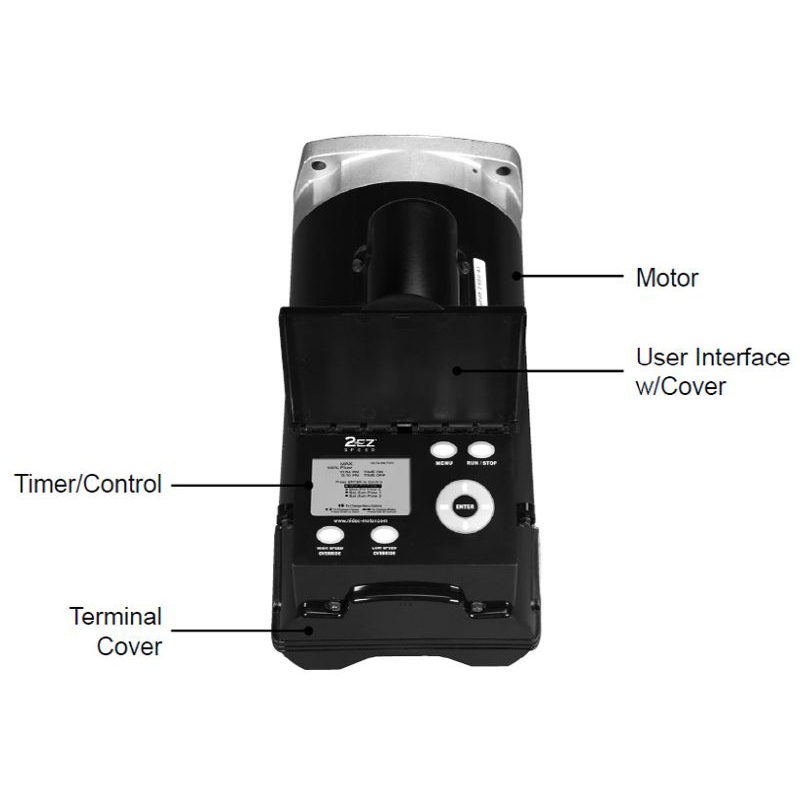

Supplied with default speed settings – Just set the time and day of the week and the timer does the rest! To customize your speed settings, provide on and off times for Low and High speeds. The timer mounted on the motor makes it easy to program operating times and flow rates for maximum energy savings.

Nidec ASB2983T Square Flange Motor With Timer Features:

• Two Compartment

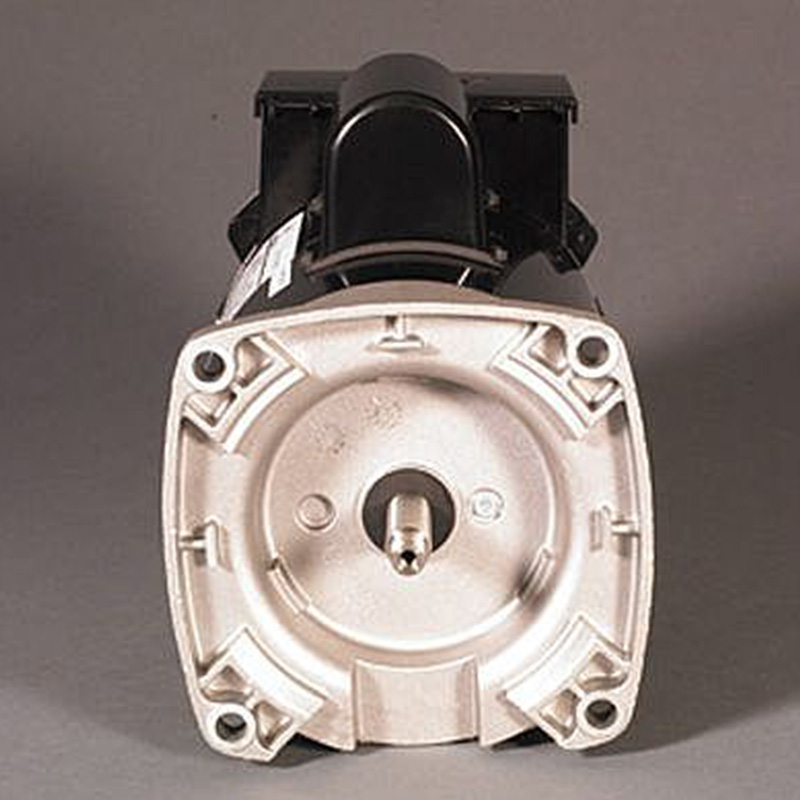

• Shaft Threads – (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
• 50 Degree ‘C’ Ambient
• Triple Bearing Protection
• 1081 Design
• Continuous Duty
• Class B Insulated
• Open Drip-Proof
• Sealed Ball Bearings
• Switchless Design
• 303 Stainless Steel Shaft
• Thermally Protected
• 6.5″ Diameter Frame
• Fully Integrated Motor Control
• Program for Low & High Speeds
• Two Settings – Mon-Fri & Sat/Sun
• High/Low Speed Override
• Freeze Sensor
• Single Phase Motor
• Meets Title 20 Legislation
• Frequency: 60
• Length Less Shaft: 12.55
• Weight: 36
