Description

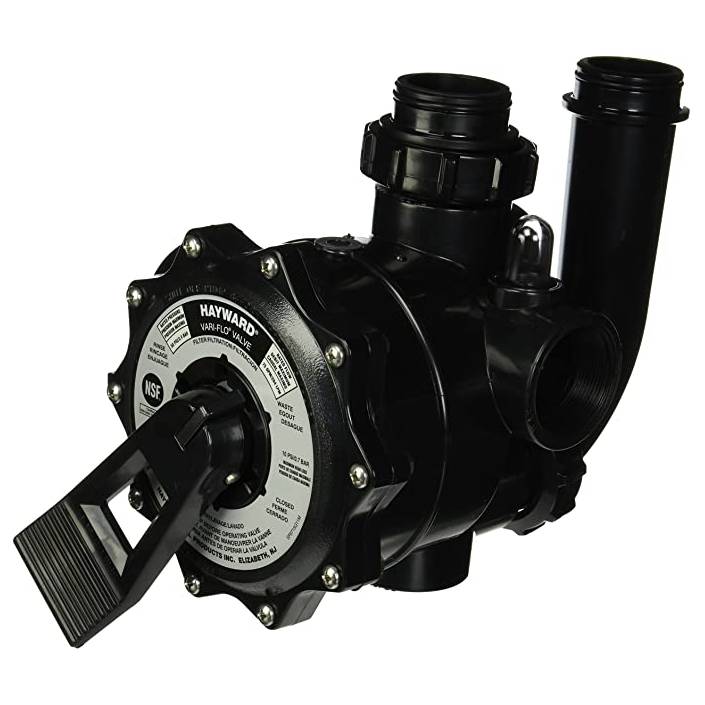

Hayward SP0715X62 2″ FPT SM Vari-Flo Sand Multiport Valve
The Hayward SP0715X62 Vari-Flo(TM) XL Side Mount Multi-Port Control Valve For Pro Series(TM)/Plus Sand Filter. Black in color.
Hayward SP0715X62 Pro-Series Control Valve Vari-Flo 2-Inch (FIP) Pipe 6-Positions with Gauge. Hayward’s Vari-Flo XL multiport control valve is engineered for maximum flow at lower pressure drops is the choice in multiport valves. All Vari-Flo control valves feature an easy-to-use lever-action handle that lets you “dial” up to seven valve/filter functions: filter, backwash, waste, rinse, closed, winter, or recirculate. Complete with an integral sight glass that lets you see when the backwashing cycle is completed, our wide selection of valve configurations allows you to match the right Vari-Flo valve to the proper application; residential, commercial, top-mount, or side mount. Vari-Flo Control Valve Functions FILTER – For normal filtering and regular vacuuming. BACKWASH – For cleaning filter sand bed of accumulated debris. RINSE – Use after completing the backwash cycle to ensure all dirty water is rinsed out of the filter to waste. WASTE – By-passes the filter for draining or lowering the pool water level and for vacuuming heavy debris directly to the waste line. RECIRCULATE – Water is recirculated through the valve, by-passing the filter. CLOSED – Shuts off the flow from the pump to the filter. Winter – For winterizing (SP0714T only).
Hayward SP0715X62 2″ FPT SM Vari-Flo Sand Multiport Valve Features
- Hayward SP0715X62 Pro-Series Vari-Flo Control Valve with Gauge.
- Total Item Package Dimensions is 25.15″ L x 29.97″ W x 40.13″ H
- Total Item Packaged Weight is 7.3 lb
