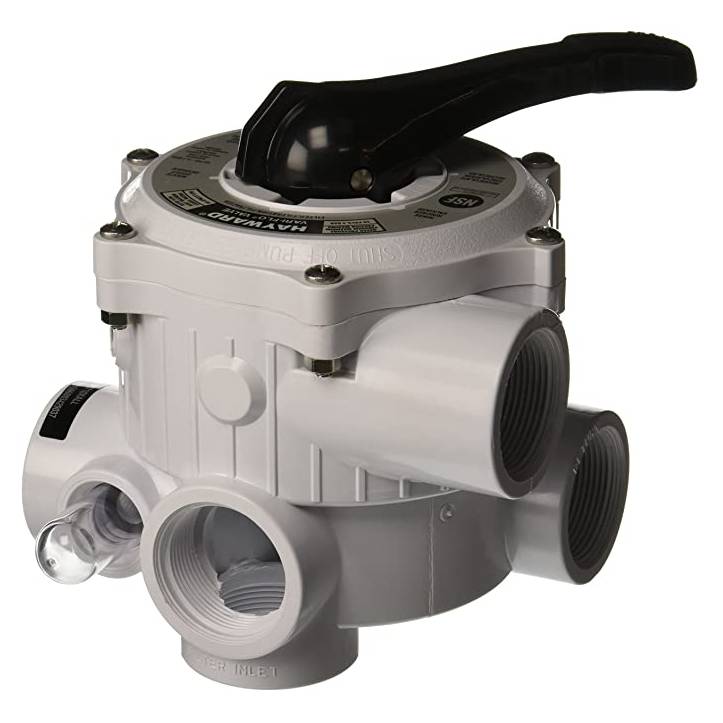

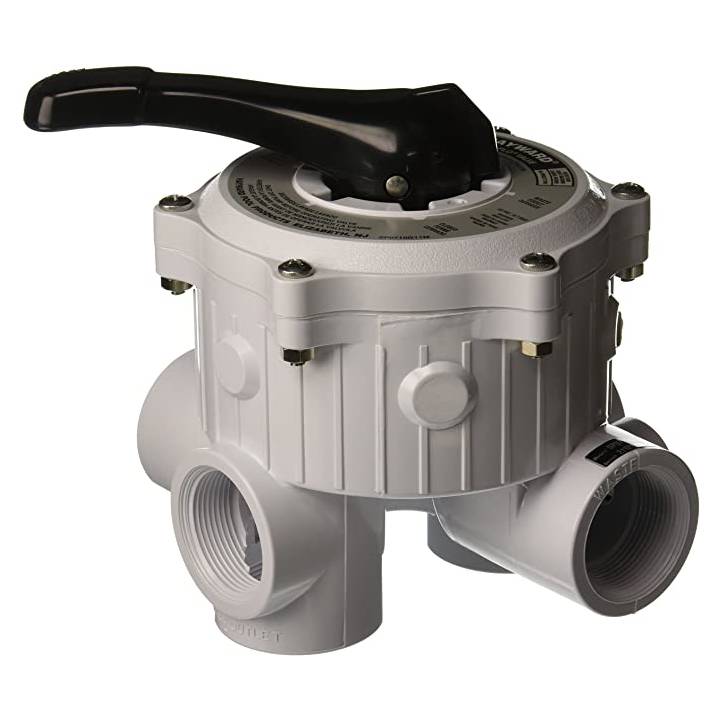

Hayward SP0710XALL 1.5″ FIP White Vari-Flo XL SM MPV Kit

Description

Hayward SP0710XALL 1.5″ FIP White Vari-Flo XL SM MPV Kit

The Hayward SP0710XALL 1.5″ FIP Vari-Flo XL multiport control valve is made of HaywardÕs exclusive PermaGlass XLª material and engineered for maximum flow. The Vari-Flo control valves feature an easy-to-use lever-action handle that lets you “dial” up to six valve/filter functions: filter, backwash, waste, rinse, closed, or recirculate. Complete with an integral sight glass that lets you see when the backwashing cycle is completed.

Hayward SP0710XALL Pro-Series Control Valve Vari-Flo 1 -1/2-Inch( FIP) Pipe 6-Positions Side Mount, White. Hayward’s Vari-Flo XL multiport control valve is engineered for maximum flow at lower pressure drops is the choice in multiport valves. All Vari-Flo control valves feature an easy-to-use lever-action handle that lets you “dial” up to seven valve/filter functions: filter, backwash, waste, rinse, closed, winter, or recirculate. Complete with an integral sight glass that lets you see when the backwashing cycle is completed, our wide selection of valve configurations allows you to match the right Vari-Flo valve to the proper application; residential, commercial, top-mount, or side mount. Vari-Flo Control Valve Functions FILTER – For normal filtering and regular vacuuming. BACKWASH – For cleaning filter sand bed of accumulated debris. RINSE – Use after completing the backwash cycle to ensure all dirty water is rinsed out of the filter to waste. WASTE – By-passes the filter for draining or lowering pool water level and for vacuuming heavy debris directly to waste line. RECIRCULATE – Water is recirculated through the valve, by-passing the filter. CLOSED – Shuts off the flow from the pump to the filter. Winter – For winterizing (SP0714T only).

Hayward SP0710XALL 1.5″ FIP White Vari-Flo XL SM MPV Kit Features

• Hayward SP0710XALL Vari-Flo(TM) XL Multi-Port Control Valve, 1-1/2 Inch FIP; White in color
• The easy-to-use lever-action “dial” up to six valve/filter functions: filter, backwash, waste, rinse, closed, or recirculate.
• Side Mount position
