Hayward H200FD Indoor Negative-Pressure Vertical Vent Adapter Kit

Description

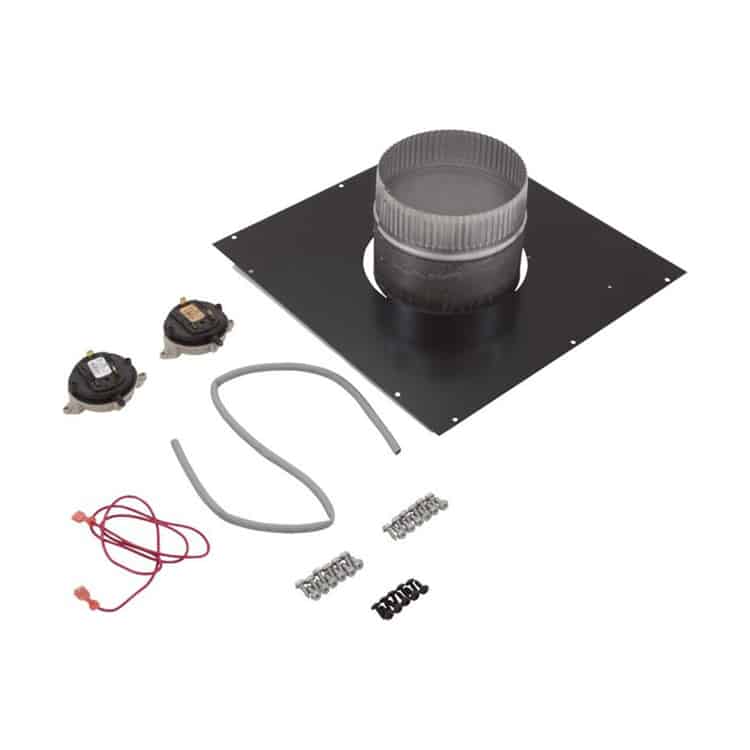

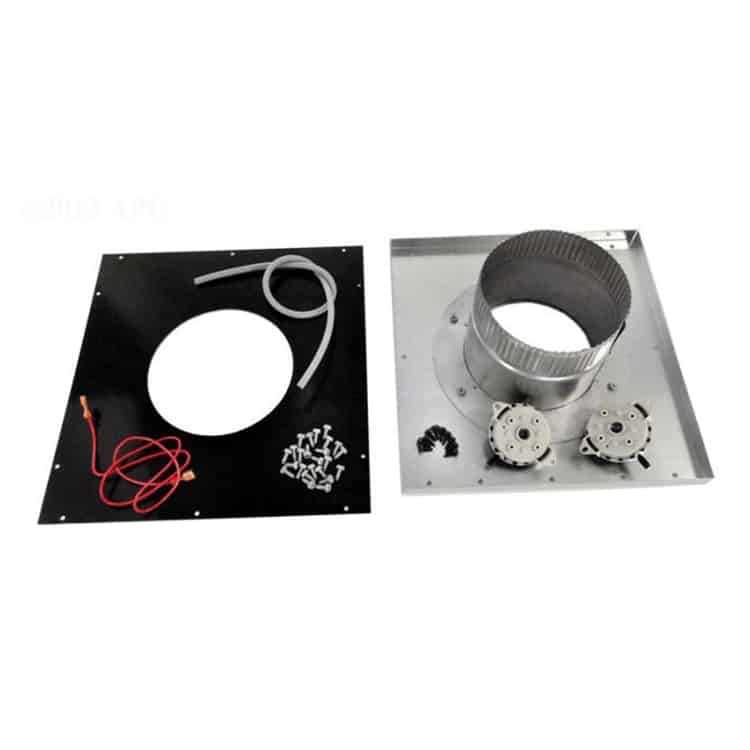

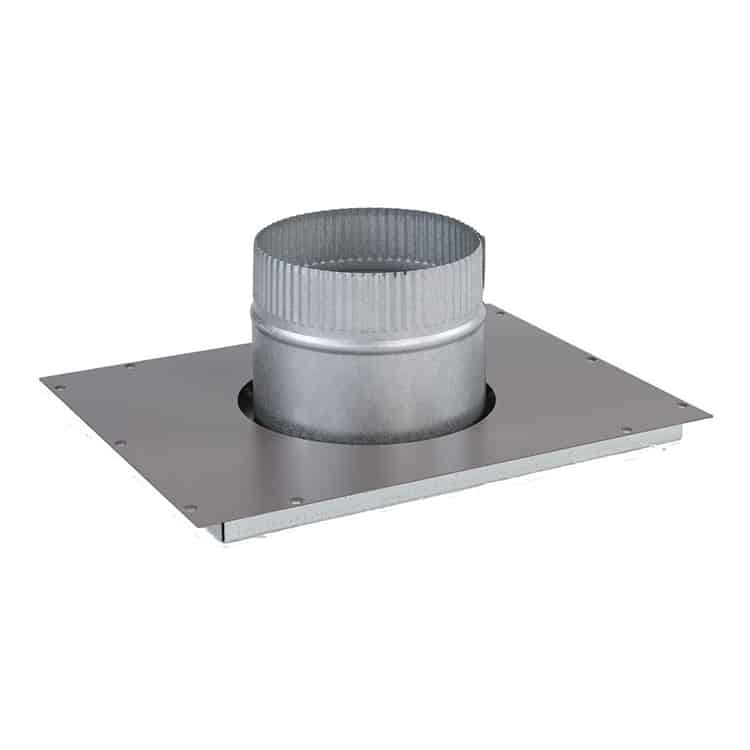

Hayward H200FD Indoor Negative-Pressure Vertical Vent Adapter Kit

The Hayward H200FD Indoor Negative-Pressure Vertical Vent Adapter Kit is designed to use with Universal H-series Low Nox gas heater models H150FD, H200FD, H250FD, H300FD, H350FD, H400FD. Negative-Pressure Ventilation is for a vertical or straight up or almost straight up vent pipe where the heat rise creates lift and minimal condensation will form in the pipe. Positive-Pressure Ventilation is for a more horizontal application venting application where the heat rise is less and there is a chance of more condensation in the pipe that will cause rusting and damage. This kit enables indoor installations where the exhaust vent pipe termination is required to be vertically terminated a minimum of 3 feet above the roof and a minimum of 2 feet above any portion of a building within 10 feet horizontally. This kit does not allow horizontal vent termination. Vent Pipe Limitations: (a) 50 feet maximum vertical height, (b) 25 feet maximum horizontal length (horizontal length cannot exceed 1/2 of the vertical height), or (c) 3 elbows maximum.

Hayward H200FD Vertical Vent Adapter Kit Features:

• Hayward part number UHXNEGVT12001
• Indoor Vertical Vent Adapter Kit
• For H200FD Series Heaters only
• 6″ Vent Opening
• Negative Pressure (Vertical) Ventilation
• Standard Cupro Nickel Heat Exchanger
• Excellent Salt Water and chemical Corrosion Resistance
• Exclusive ‘Totally Managed’ Cupro Nickel Heat Exchanger Water Flow
• Same Water Velocity Through All Tubes for Faster Heating
• Patented Header By-Pass Design
• Up to 18% Savings by Reducing Pump Run-Time
• 2inx 2 1/2in CPVC Union Plumbing Connections
• Common Union for Installation or Service
• Low NOx Emissions – Meets Clean Air Quality Standard
