CMP 25546-000-000 SPX1411B Hayward White Faceplate Inlet Thread

Description

CMP 25546-000-000 Inlet Faceplate, SPX1411B, White

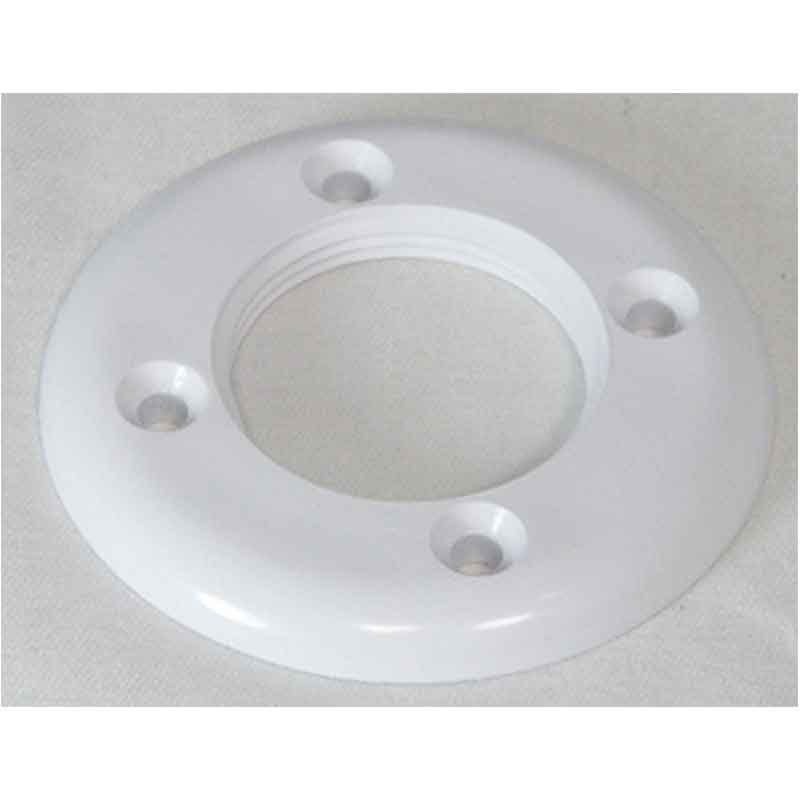

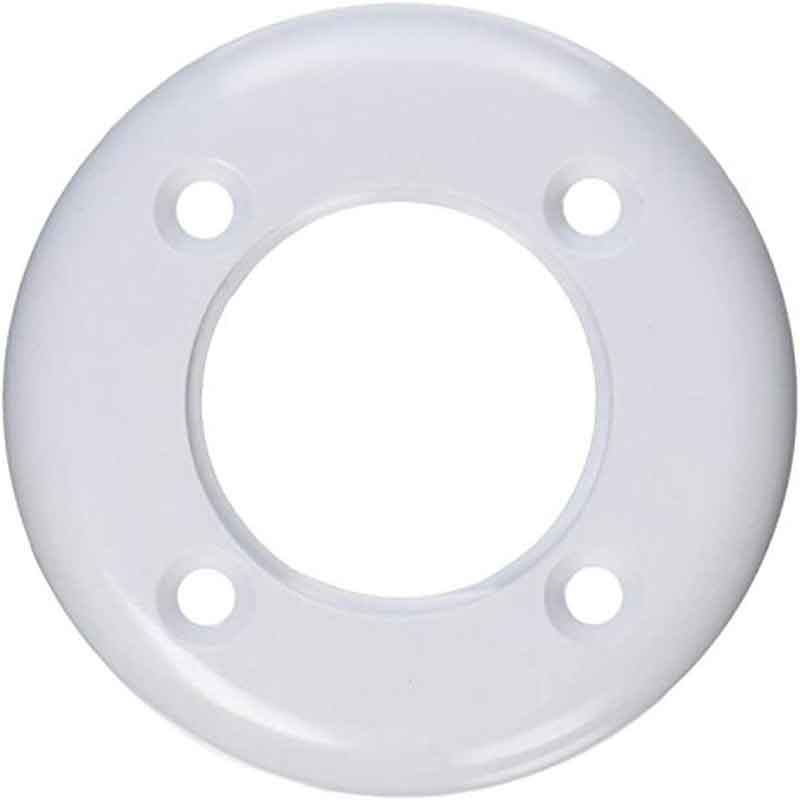

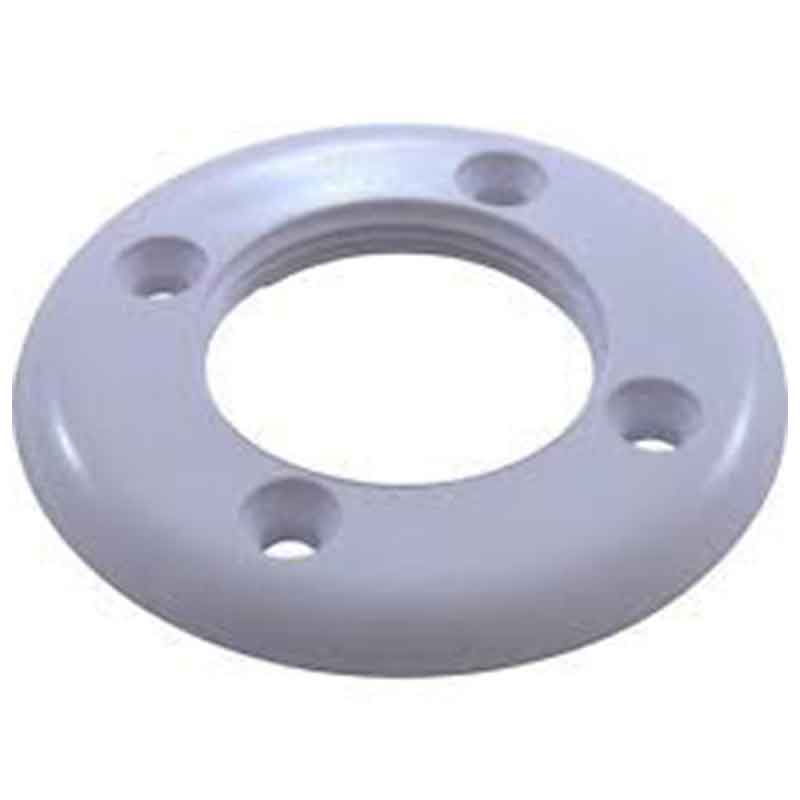

This is the 4-hole old style faceplate used on the Hayward SP1411. It has 1.5″ female threads on the inside, where the eyeball screws in. Material is white ABS plastic. It is round with 4 evenly spaced holes on the face; the back is completely flat, with 2 partial holes. The 4 screw holes are 1/4″ and have countersinks that are 15/32″ diameter. Distance between holes on opposite sides is 2-7/16″ – from centerline to centerline. Dimensions : Outside Diameter: 3-9/16″ Inside Diameter: 1-3/4″ Thickness: 9/32″

CMP 25546-000-000 Inlet Faceplate, SPX1411B, White Features:

• Fits hayward fitting models sp1411, sp14071
• Dimensions are 3.5″ X 3.5″X 0.3″
• Weighs .29lbs
• Material: White ABS plastic
• Screw holes: 1/4″
