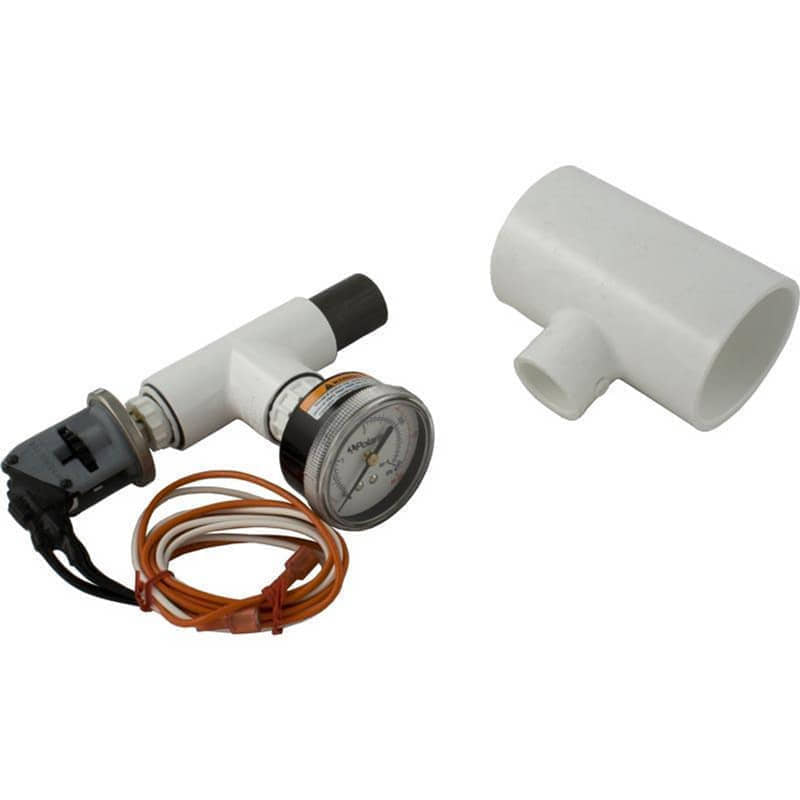

Caretaker 4-7-2 UltraFlex/UltraFlex 2 Pressure Switch And Gauge Assembly

Description

Caretaker 4-7-2 UltraFlex/UltraFlex 2 Pressure Switch

On the 4-7-2 UltraFlex/UltraFlex 2 Pressure Switch the Pressure Switch Assembly lets the Controller PCB know that water is moving through the system. The wires on the Pressure Switch connect to the Controller PCB in the 3 and 4 position. While the pump is running, the wires on the Pressure Switch should read continuity on an electrical meter. For troubleshooting, always test the pressure switch first.

The Pressure Switch glues into a 2″ x 3/4″ tee. The tee follows the return line with the 3/4″ lining up vertically. Use flexible conduit next to the equipment to run the wires from the Pressure Switch to the Controller PCB.

Caretaker 4-7-2 UltraFlex/UltraFlex 2 Pressure Switch Features:

• Pressure Switch and Gauge Assembly
• Original Caretaker repalcement parts
• Zodiac Caretaker part number 4-7-2
• Fits UltraFlex and UltraFlex2
