Balboa BB302741 Duplex Transformer, 120V, 9-Pin

Description

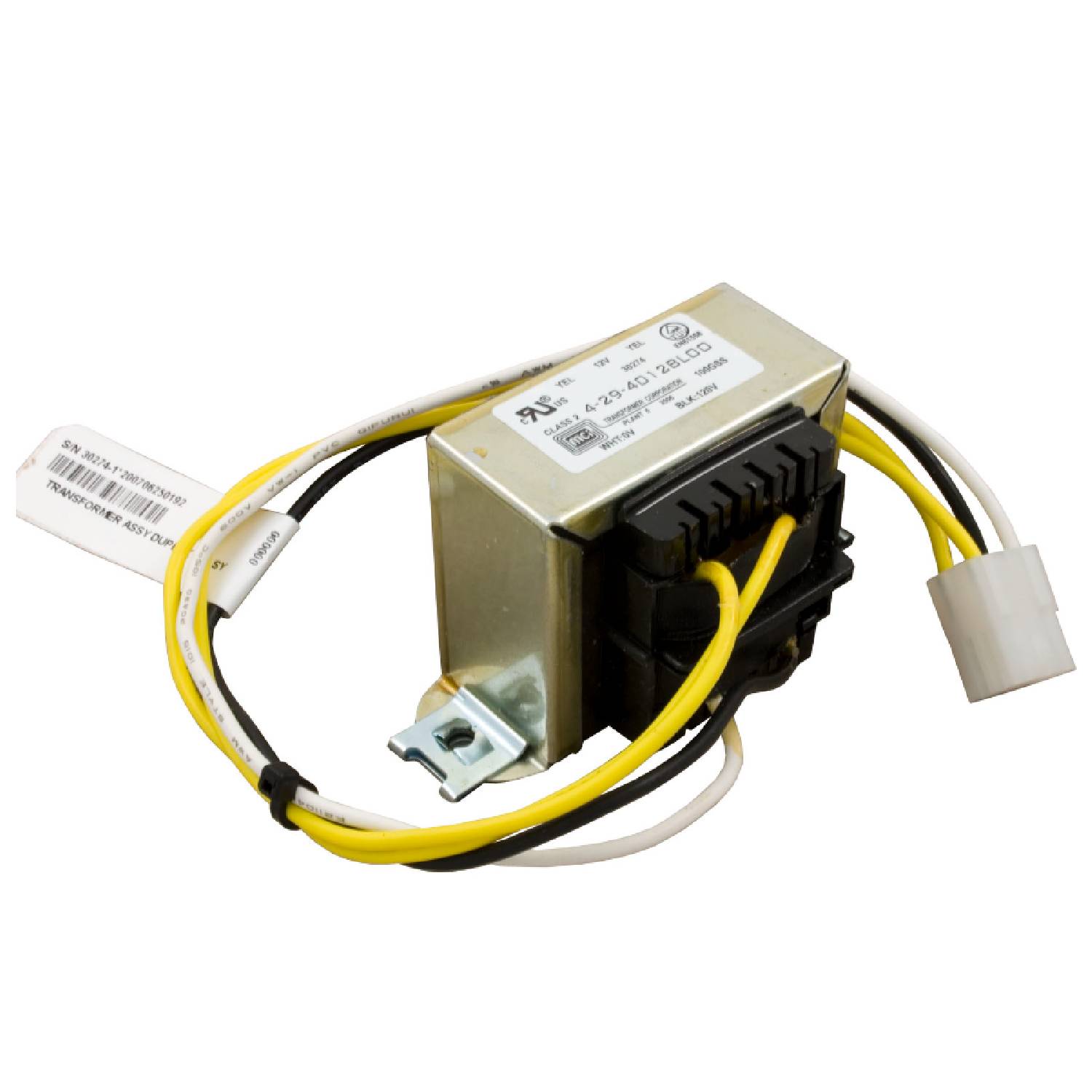

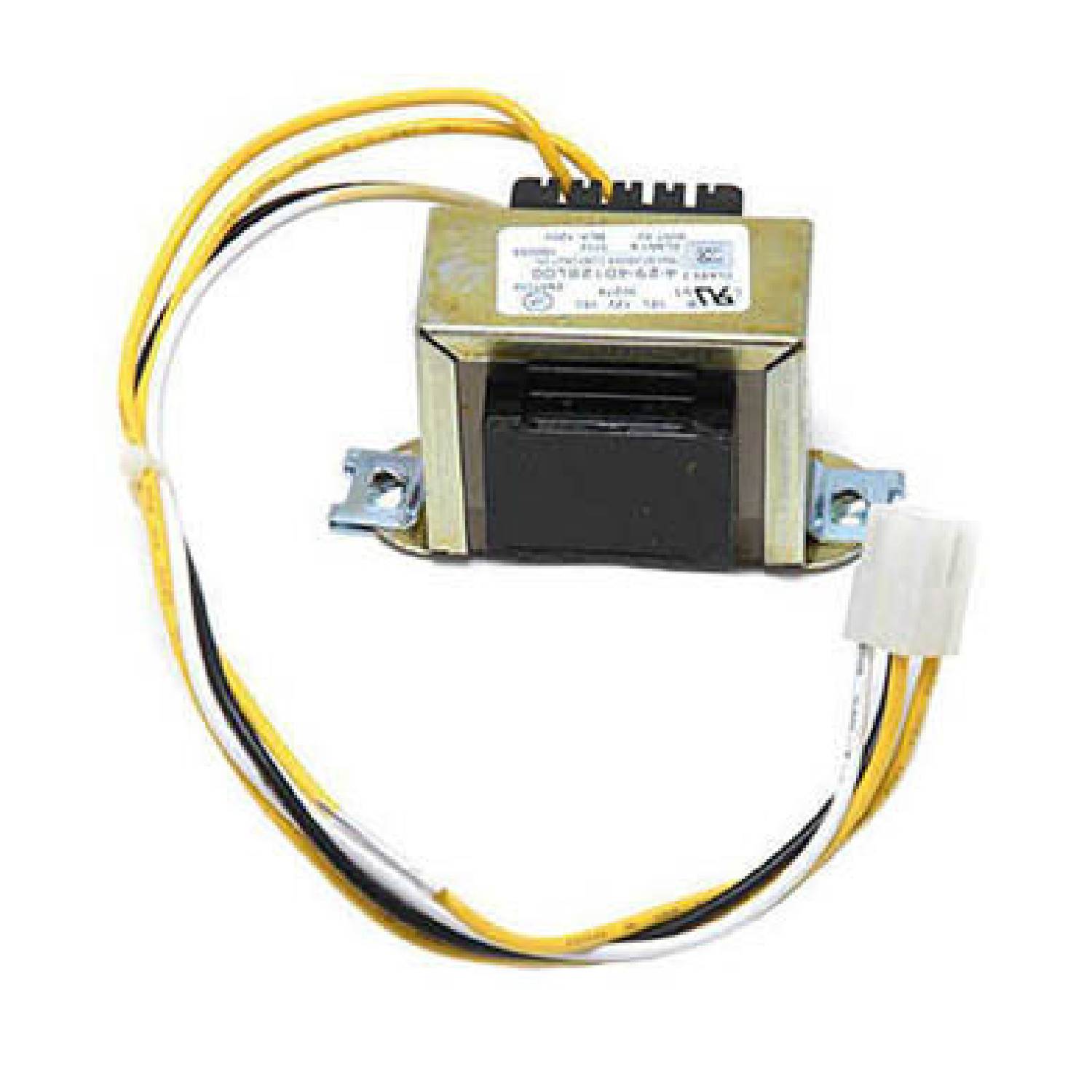

Balboa BB302741 Duplex Transformer, 120V, 9-Pin

The Balboa BB302741 Duplex Transformer is an essential electrical component engineered specifically for spa and hot tub control systems, particularly those that use the Duplex series control boards produced by Balboa Water Group — one of the most recognized and trusted brands in the spa industry. At its core, this device is a step-down transformer designed to convert standard high-voltage mains electricity into a lower, safer voltage that spa control electronics can reliably operate on. Without this critical piece of hardware, many control boards, sensors, lights, and auxiliary components within a spa system would either receive incorrect voltages or be at risk of electrical failure, rendering the system inoperative or hazardous.

In typical operation, households or outdoor power supplies deliver 120 V AC (alternating current) as standard voltage in North America, and the Balboa BB302741 is designed to accept this input power. Internally, through its electrical windings and thoughtfully engineered construction, the transformer reduces that incoming 120 V primary voltage down to approximately 15 V AC, which matches the voltage requirements of specific spa control circuits and associated low-voltage devices. This conversion is accomplished through electromagnetic induction between primary and secondary coils, ensuring a safe and stable output that matches the expected input specifications of Balboa’s spa PCBs (printed circuit boards) and accessories.

The BB302741 unit features a 9-pin Molex style connector, which makes it easy for technicians and installers to integrate it directly into compatible Balboa control boards without needing modification or custom wiring. The nine-pin interface standardises connections so that all wires — including high-voltage input conductors and low-voltage output conductors — are arranged correctly to match the mating connector on the system’s control board. This design simplifies installation and reduces the likelihood of wiring errors, which can lead to blown fuses, system malfunctions, or in the worst cases, electrical hazards.

Physically, the BB302741 is compact but rugged — typical of replacement transformers designed for spa environments. It is built to withstand vibration, moisture, and thermal cycling, which are common in hot tub equipment compartments. The weight and dimensions (approximately 3.25 × 3 × 2.5 inches and around 1.34 lbs depending on the vendor) make it straightforward to incorporate into existing spa packs without requiring a large footprint. The transformer housing and internal insulation materials are chosen for durability and safety, crucial attributes for any part operating in an environment where humidity and temperature variations are the norm.

Balboa’s transformers, including the BB302741, are widely used as original equipment manufacturer (OEM) parts in many hot tubs, particularly in the Sundance Spa Duplex series and other Balboa-equipped systems. This means that they are designed as direct replacements for factory-installed units, providing a high degree of compatibility with the original electrical architecture. For owners and service technicians, this compatibility ensures that replacement is straightforward: remove a failing transformer and install the BB302741 without needing to adapt the spa pack or to alter the auxiliary wiring harness.

One of the major reasons operators replace the transformer in a spa is to resolve issues related to power delivery and control board functionality. When a transformer begins to fail — often due to insulation breakdown, overheating, or winding fatigue — the low-voltage output can become unstable or drop entirely, leading to symptoms such as unresponsive control panels, intermittent fault codes, or complete control system shutdowns. Replacing a worn or defective transformer with a new, high-quality unit like the BB302741 helps ensure that the system regains stable, consistent low-voltage power, restoring normal operation to the spa’s control electronics and auxiliary components.

The BB302741 is designed for reliability and long service life, though the exact longevity can vary based on operating conditions, frequency of use, ambient temperature, and the overall electrical environment of the spa system. As with any component that converts electrical energy, it will experience gradual wear over many heating and cooling cycles. However, Balboa’s commitment to quality and performance means this transformer is backed by strong engineering and manufacturing practices, making it a dependable choice for replacement or repair use.

At the core of Balboa Water Group, is a fundamental commitment to the leisure water industry to provide a simple, comprehensive, single source solution to their product range that include the highest quality products in electronic control systems, jets, pumps, white goods and accessories.

Balboa BB302741 Duplex Transformer, 120V, 9-Pin Features:

• Engineered specifically for Balboa Water Group systems, especially Sundance Spa Duplex models
• 9-pin Molex connector simplifies installation and compatibility with Balboa Duplex control boards
• Connector pin layout ensures correct wire orientation and reduced installation errors
• Works as a direct OEM replacement for part numbers like 30274-1 and BAL302741
• Critical for resolving issues with low-voltage faults and control system malfunctions
• Built to withstand high humidity and thermal cycling common in spa environments
• Helps ensure stable, consistent power delivery to control panels and accessories
• Designed for long service life with proper installation and operating conditions
• Compact and durable housing suited to spa equipment compartments
