Balboa BB302701 Transformer, 120V, 6-Pin

Description

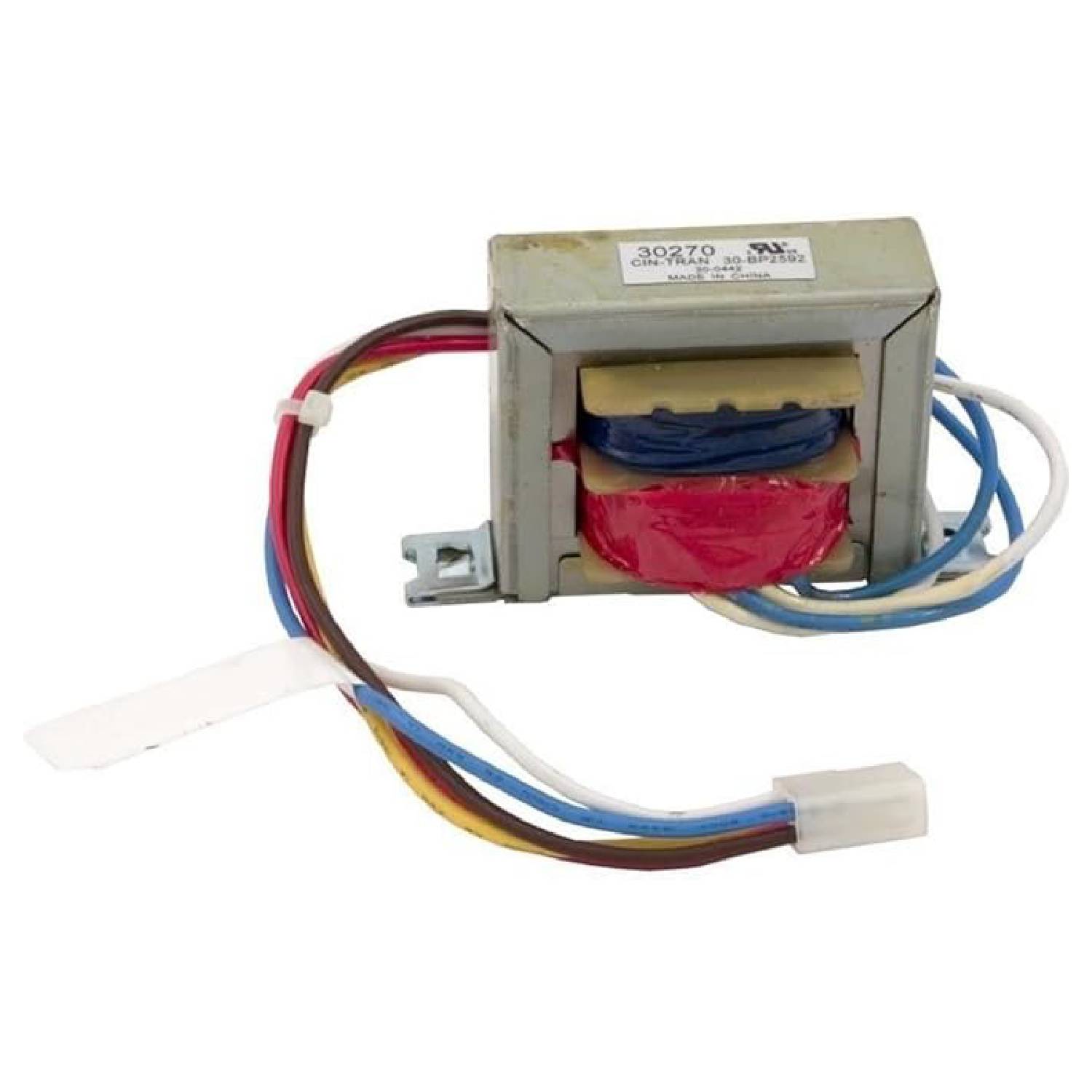

Balboa BB302701 Transformer, 120V, 6-Pin

The Balboa BB302701 Transformer is a specialized electrical component engineered specifically for use in hot tubs, spas, and related hydrotherapy systems. As an OEM (Original Equipment Manufacturer) part from Balboa Water Group — a global leader in spa electronic control systems — this transformer plays a critical role in safely converting household mains power into usable low-voltage supply for the spa’s control electronics. Designed with a 120 V input and a 6-pin connection, this transformer is commonly found in older Balboa control system configurations, particularly those used in Sundance and similar spa models. It ensures that delicate spa control electronics receive a stable, reliable power source isolated from the high-voltage supply that feeds heaters, pumps, and other high-draw equipment.

At its core, the BB302701 is an electrical step-down transformer. The primary side accepts standard North American line voltage — nominally 120 V alternating current — and steps it down to a lower AC voltage suitable for powering Balboa circuit board logic and associated low-voltage systems. While specific output voltage can vary depending on system requirements, typical Balboa transformers of this family provide around 12 to 15 V AC on the secondary side. What distinguishes the BB302701 from other models is its 6-pin plug, allowing secure, quick installation into corresponding Balboa circuit boards without the need for separate terminal blocks or manual wiring. The 6-pin configuration includes connections for primary mains input and multiple secondary outputs, enabling the transformer to supply the board and peripheral sensor circuits simultaneously.

Mechanically, the BB302701 is compact and robust, designed for installation within the spa’s equipment compartment where it is protected from direct water exposure but may nonetheless face elevated humidity, thermal cycling, and vibration. The casing — typically a thermoset insulating material — houses the magnetic core and winding assembly, ensuring that the transformer maintains safe separation between high-voltage primary and low-voltage secondary circuits. This isolation is crucial for user safety and compliance with electrical standards; it prevents hazardous voltages from migrating into the control electronics and reduces the risk of shock or component damage if a fault occurs in the spa’s high-voltage circuitry.

Spa systems are complex amalgamations of electrical components — pumps, heaters, lights, sensors, and control logic — each with distinct power requirements. The control board, temperature sensors, relays, topside controls, and diagnostic circuits typically run at low voltage provided by the transformer. Without the transformer, the control board would be unable to sense user commands or process temperature feedback, effectively rendering the spa inoperative. Balboa’s BB302701 fulfills this indispensable role by bridging the high-voltage supply and the low-voltage control domain, thereby enabling seamless operation of the spa.

The importance of reliable power delivery in spa electronics cannot be overstated. Fluctuations or interruptions in the transformer’s output can lead to errors in temperature regulation, erratic behavior in pumps and jets, or even complete system shutdowns. For this reason, transformers like the BB302701 are designed with durable windings, strong insulation, and adequate thermal performance characteristics to withstand the environment inside a spa control cabinet. While not typically user-serviceable beyond basic inspection and replacement, proper mounting, ventilation, and protection from moisture are important installation considerations to ensure longevity and consistent performance.

Technical service guides for Balboa systems emphasize the transformer’s role during diagnostics and troubleshooting. For example, when technicians measure voltages at the control board’s low-voltage terminals, they often use the transformer output as a baseline reference to determine whether the board or other components are at fault. Should there be no voltage reading where one is expected, the transformer itself is a leading suspect. Likewise, continuity tests using a multimeter can reveal winding integrity issues if measured resistance deviates significantly from expected values. In typical 6-pin Balboa transformers, the resistance between specific primary and secondary terminals falls within manufacturer-specified ranges — any significant deviation suggests an internal fault and necessitates replacement.

At the core of Balboa Water Group, is a fundamental commitment to the leisure water industry to provide a simple, comprehensive, single source solution to their product range that include the highest quality products in electronic control systems, jets, pumps, white goods and accessories.

Balboa BB302701 Transformer, 120V, 6-Pin Features:

• Compact design fits within standard spa equipment compartments without requiring extensive rewiring
• 6-pin connector configuration for secure, plug-and-play installation into Balboa circuit boards
• OEM part from Balboa Water Group — a leading manufacturer of spa control systems
• Designed for 120 V AC input to supply low-voltage power for spa control electronics
• Provides stable and reliable low-voltage output for control logic, sensors, and relays
• Built for durability in spa environments with robust insulation and secure mounting
• Compatible with a range of older Balboa and Sundance spa control systems
• Essential for proper functionality of control boards and user interfaces
• Facilitates safe isolation between line voltage and low-voltage circuits
