Balboa 54372-03 VS510SZ Circuit Board

Description

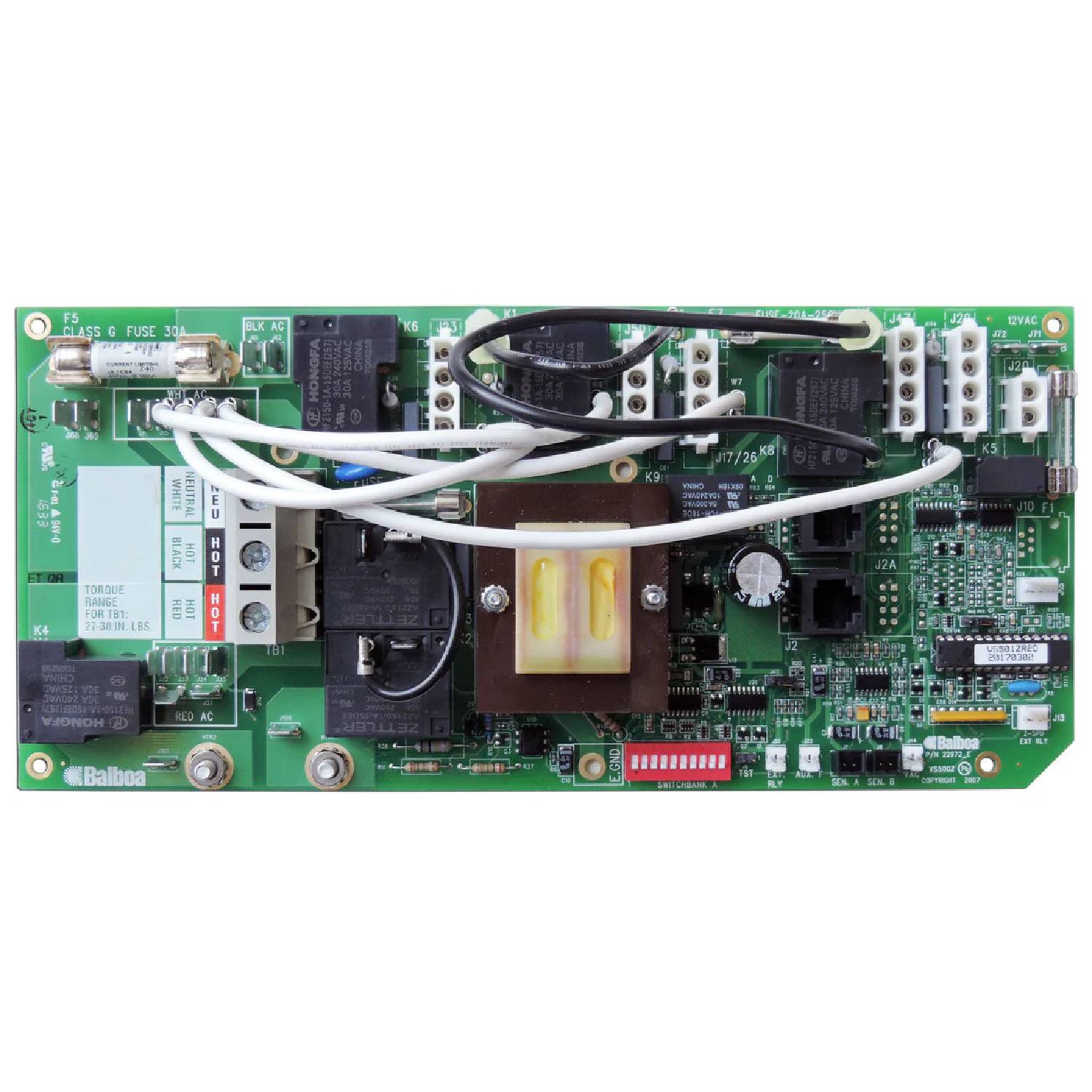

Balboa 54372-03 VS510SZ Circuit Board

The Balboa 54372-03 Circuit Board is a purpose-built electronic control board designed to manage and coordinate the essential functions of hot tubs, spas, and whirlpool baths that use the VS510SZ control system architecture developed by Balboa Water Group®, a global leader in spa electronics. This control board serves as the digital “brain” of the spa system, interpreting inputs from sensors and user interfaces, switching power to pumps and accessories, and ensuring proper sequencing of functions such as heating, filtration, water circulation, ozone generation, lighting, and more. Because spa systems include multiple mechanical and electrical subsystems (pumps, blower, lights, heater elements, sensors, and topside keypads), the circuit board must be capable of handling a mix of high-voltage outputs, low-voltage controls, temperature data, and communication protocols — all in a single integrated module that fits into the spa pack housing.

At its core, the 54372-03 board relies on VS510SZ-series processor chips (e.g., VS510SZR1, VS510SZR2, VS510SZR2D) to execute embedded firmware that coordinates the spa’s functions. These chips are critical because they define how the board communicates with topside control panels (such as Digital Duplex or Lite Duplex keypads) and how it responds to user commands when adjusting temperature, starting pumps, or switching on lighting. It is important to identify the board not merely by visual similarity but by the chip number and part number printed on the module, because appearance alone does not guarantee compatibility due to different software and firmware on seemingly identical boards.

The design dimension and connector configuration of the board (most models use an 8-pin phone-style connector for topside communication) are tailored to fit specific spa packs. The board measures approximately 10.4″ × 4.9″ × 12.3″ (around 11″ × 5″ in some documentation) and is built with high-grade electronic components to withstand the inherent humidity, heat, and vibration in a spa environment. This careful selection of materials ensures long-term reliability, even under the stresses typical of whirlpool and spa electrical enclosures.

One of the key reasons this board is widely used in the industry is its versatility and backward compatibility. The 54372-03 revision replaces earlier iterations such as 54372, 54372-01, and 54372-02, meaning it can serve as a suitable retrofit or upgrade for spa packs originally designed around these older parts. The board also supports a range of chip ID numbers and control panels from Balboa’s VL series, making it adaptable across multiple spa manufacturers and models, provided that the electrical configuration (pump amperage and voltage) stays within the recommended specifications.

Unlike some older spa control systems that rely on external sensors like pressure switches, the VS510SZ board typically uses integrated sensor feedback from inside the spa pack (especially in systems with M7 heater assemblies), which simplifies wiring and reduces the need for additional field-installed components. This built-in sensor approach enhances reliability because there are fewer points of failure between the heater and the control system.

In many cases, replacing an aging or failed circuit board with a 54372-03 model can rejuvenate a spa system that previously had intermittent electrical issues, unresponsive keypads, heating failures, or erratic pump control. Because circuit boards are non-returnable (once powered and installed), careful identification and verification of compatibility are essential before purchase. Many spa technicians recommend referencing both the old board’s chip number and the spa’s control panel type to ensure proper matching.

At the core of Balboa Water Group, is a fundamental commitment to the leisure water industry to provide a simple, comprehensive, single source solution to their product range that include the highest quality products in electronic control systems, jets, pumps, white goods and accessories.

Balboa 54372-03 VS510SZ Circuit Board Features:

• Broad cross-reference compatibility with previous revisions (54372, 54372-01, 54372-02)
• Requires correct chip identification and dipswitch configuration for proper installation
• Integrated connections for circulation pump, ozone/UVC, and 12 V lighting
• Does not require external pressure or flow sensors for heater operation
• Enhanced diagnostics and safety monitoring via microprocessor logic
• Supports dual-speed main pump and multiple auxiliary circuits
• Compatible with digital duplex and lite duplex control panels
