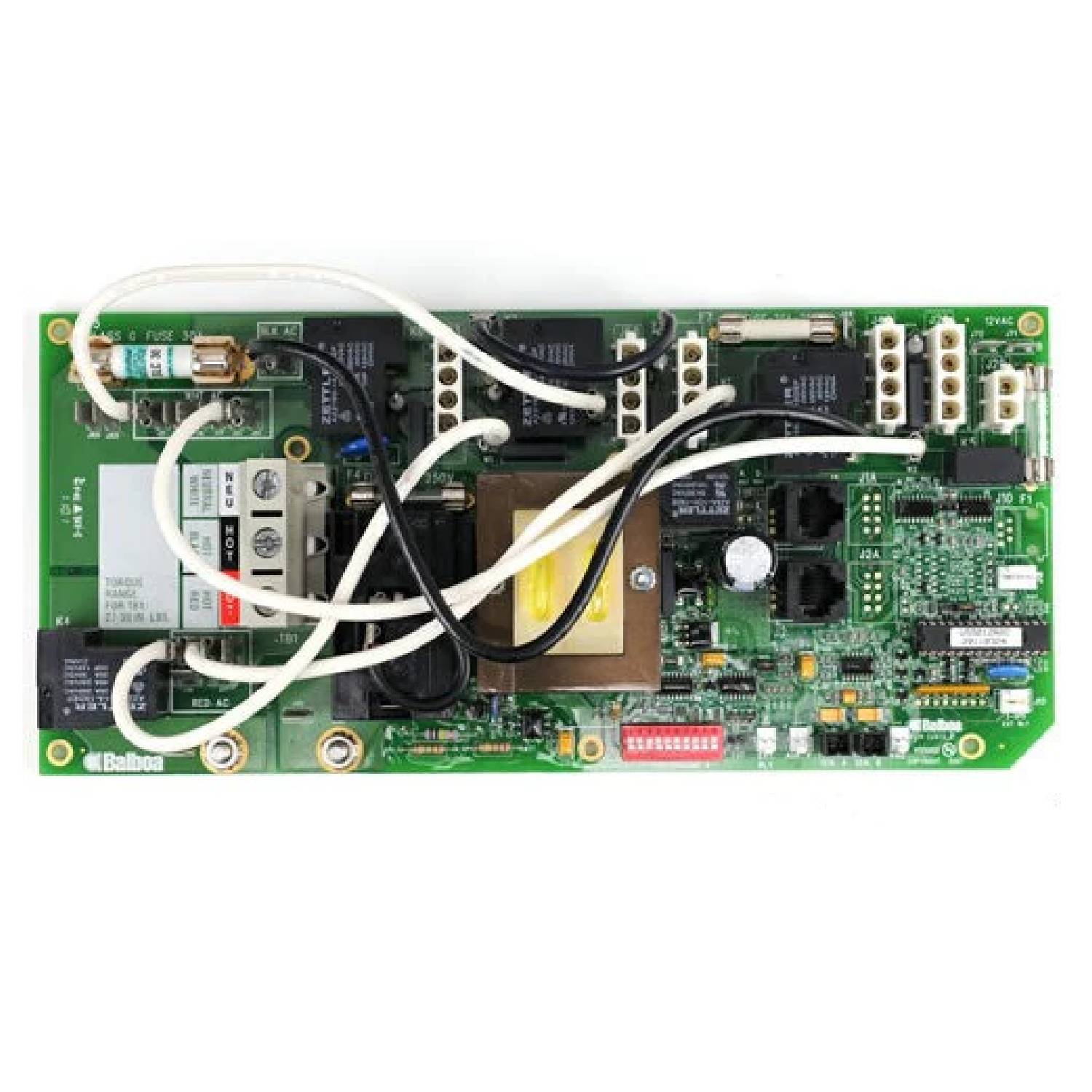

Balboa 54357-03 VS501Z Generic Circuit Board

Description

Balboa 54357-03 VS501Z Generic Circuit Board

The Balboa 54357-03 VS501Z circuit board is a highly regarded and widely used replacement control board designed for spas and hot tubs that use Balboa Water Group’s VS501Z series control systems. At its core, this printed circuit board (PCB) functions as the central electronic nervous system of compatible spa packs, coordinating and managing the operation of pumps, heaters, lights, ozone systems, auxiliary accessories, circulation pumps, and user-interface keypads. Built with robust engineering and industry-proven reliability, the 54357-03 board incorporates M7 technology, which simplifies spa system architecture by removing the need for older mechanical pressure switches in many applications, providing more accurate control and improved overall system responsiveness. Unlike basic boards that may only handle a single function, this VS501Z board is capable of integrating multiple spa functions simultaneously — such as dual-speed primary pumps and single-speed secondary pumps or blowers — ensuring that contemporary spa setups with diverse feature sets operate smoothly and efficiently. Because of this, the VS501Z board is not only a direct OEM replacement for a range of earlier Balboa part numbers (including 54357, 54357-01, 54357-02, and others) but is also compatible with many alternative or legacy part numbers used by various spa manufacturers, making it a versatile choice for spa technicians and owners looking to restore or enhance aging control systems.

One of the standout aspects of the 54357-03 circuit board is its broad compatibility with different voltages and spa configurations. Engineered to support both 115V and 230V systems, the board caters to spa installations in regions with differing electrical standards. However, proper setup is critical — installers must correctly configure component voltage settings and dip switches to match the specific equipment and voltage requirements of the spa system before operation. Failure to set the board voltage and related configuration options properly can lead to malfunction or reduced performance, which is why many installation manuals stress careful pre-installation checks and adjustments. This flexibility particularly benefits spas that have been upgraded or modified over time, as the board can be adapted to a wide array of pump and accessory combinations, provided that the total electrical load and configuration requirements are within the board’s operating parameters.

In practice, the VS501Z circuit board offers reliable control over jet pumps, auxiliary systems, lighting, circulation pumps, and ozone or UVC sanitizers, making it ideal for medium to large spa systems with multiple operational components. For example, the primary pump — often the largest electrical load — can be controlled in dual-speed mode, allowing users to switch between higher and lower speeds as needed for jet pressure or energy savings. The secondary pump or air blower is typically supported in single-speed mode, providing balanced air or water flow for features like air jets or smaller secondary circuits. The board also accommodates optional accessory circuits like ozone units, which help with water sanitation, as well as 12V lighting systems that enhance the aesthetic and functional experience of the spa environment. All these circuits are coordinated through the board’s internal firmware, ensuring synchronized operation and efficient communication with the spa’s topside control panels.

One of the defining benefits of using the Balboa 54357-03 VS501Z board is the compatibility with multiple topside control panel models — the control interface that spa users interact with directly. This board works with a variety of Balboa topside keypads, including but not limited to Lite Digital and Mini Oval Digital panels, and part numbers such as 51676, 54094, 53646, 52144, and others. This compatibility simplifies replacement and reduces frustration for spa owners who may not have access to the exact original board their system shipped with, while also supporting integration with modern user interfaces for enhanced control options. Importantly, because many spa issues — such as failure to heat, erratic pump behavior, or unresponsive keypads — can often be traced back to a failing control board, replacing a problematic unit with a compatible, genuine part like the VS501Z often restores normal operation and extends the useful life of the spa system.

At the core of Balboa Water Group, is a fundamental commitment to the leisure water industry to provide a simple, comprehensive, single source solution to their product range that include the highest quality products in electronic control systems, jets, pumps, white goods and accessories.

Balboa 54357-03 VS501Z Generic Circuit Board Features:

• Supports dual-speed primary pump and single-speed secondary pump or blower operation
• Controls auxiliary accessories, ozone/UVC sanitation circuits, and 12V lighting systems
• Provides reliable heater, pump, and accessory coordination via internal control logic
• Compatible with 115V and 230V spa systems with correct installation configuration
• Ideal for restoring or enhancing spa control functionality when original boards fail
• Works with multiple topside control panels (e.g., Lite Digital, Mini Oval Digital)
• Requires proper dip switch and voltage setup for safe and accurate operation
• Replaces many legacy part numbers and chip variants across spa brands
• Built for durability and long-term spa environment performance
